8115-DO-DC isolation module
Product Manual：
8115-DO-DC is not strictly an isolation module, but an EMERSON (formerly GE) PAC8000 series 8-channel non isolated digital output module used for driving DC loads in industrial PLC/DCS systems.
Model: 8115-DO-DC
Channel configuration: 8-channel source output, 1A per channel, maximum module total current 3A
Output voltage: 2-60VDC wide range, suitable for various DC loads
Response speed: 1ms high-speed switch, supports discrete or pulse output mode
Power supply method: Module backplane power supply (system side ≤ 125mA), external 2-60VDC power supply on site side
Load type: Suitable for DC actuators such as solenoid valves, relays, indicator lights, etc
Installation specifications: standard DIN rail installation, PAC8000 universal carrier, hot swappable design
Mechanical characteristics: Compact shell, comes with detachable on-site terminals, no additional wiring terminals required
Environmental adaptability: Industrial grade wide temperature range, anti vibration, anti electromagnetic interference
Diagnostic function: Channel status LED indicator for quick troubleshooting
System compatibility: compatible with PAC8000 series controllers and mainstream fieldbus systems
Safety certification: compliant with UL/cUL, CE and other industrial standards, suitable for general and hazardous areas
Power consumption control: Low power design to reduce rack load and system energy consumption
Convenient maintenance: Modules and terminals can be replaced separately, reducing downtime for maintenance
Application scenarios: Widely used in industrial automation fields such as manufacturing, process control, energy, etc
8115-DO-DC， As a cost-effective DC output module in the PAC8000 series, it provides stable and reliable digital output solutions for industrial control systems with wide voltage, high-speed response, and strong load driving capabilities.

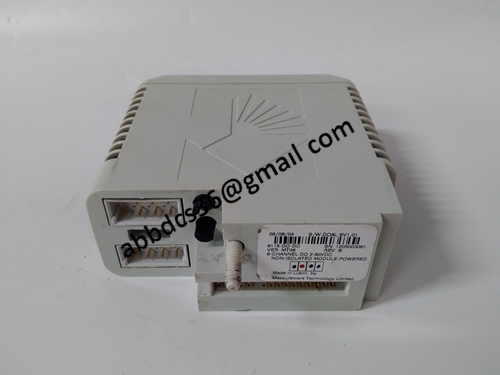

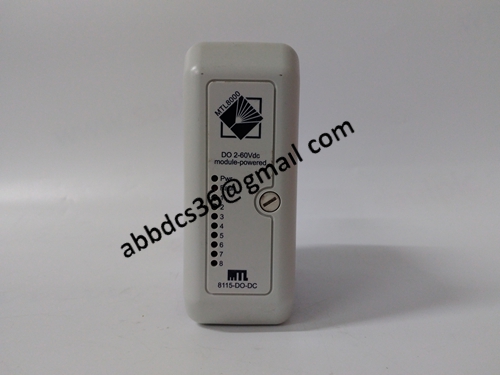

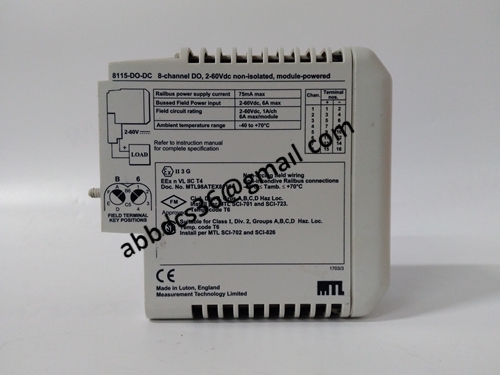

Product detailed pictures：
8115-DO-DC
