AAI141-H50 S2 Analog I/O Modulee
Product Manual：
AAI141-H50 S2 Analog I/O Module
Module Overview:
AAI141-H50 S2 is an analog input/output module in industrial automation systems, used to collect sensor signals and output standard control signals, achieving real-time monitoring and control of process parameters. It is a key component for signal acquisition and control in automation systems.
Main functions:
Analog input: Collecting current, voltage, or sensor output signals to provide high-precision measurements.
Analog output: Convert controller instructions into standard analog signals to drive actuators or control devices.
Signal isolation: There is electrical isolation between input and output to protect the system and downstream equipment.
Status monitoring: Module self-test and indicator light display of operating status, facilitating fault diagnosis.
Module compatibility: Can be combined with controllers and other I/O modules to achieve system expansion.
Performance characteristics:
High precision, high stability, suitable for industrial environments
Strong anti-interference ability, ensuring reliable signal transmission
Compact modular design, easy to install in control cabinets or racks
Support long-term stable operation with low maintenance costs
Application fields:
Industrial Automation Process Control
Data Collection and Monitoring System
Analog signal interface for PLC and DCS systems
Measurement and control of process variables such as flow rate, temperature, and pressure
Installation and maintenance:
Supports DIN rail or rack installation
Clear identification of wiring terminals for quick connection
The status indicator light facilitates on-site monitoring and troubleshooting
Regularly check the operation status of signal lines and modules to ensure system reliability
Summary:
The AAI141-H50 S2 analog I/O module achieves reliable and efficient process control in industrial automation systems through high-precision signal acquisition and output, isolation protection, and status monitoring. It is an important interface component of industrial control systems.

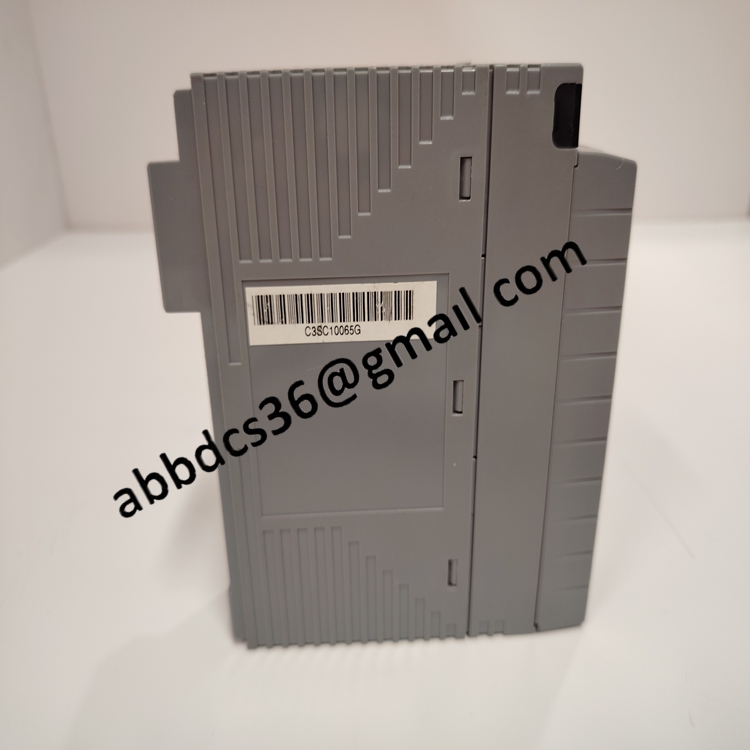

AAI141-H50 S2 Product detailed pictures：
AAI141-H50 S2 product video
