ACS CM-2-A-E-M2-H4-H4-XY Controller Module
Product Manual：
ACS CM-2-A-E-M2-H4-H4-XY Controller Module

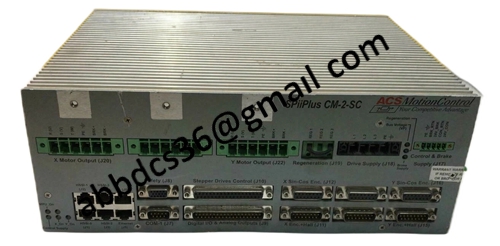

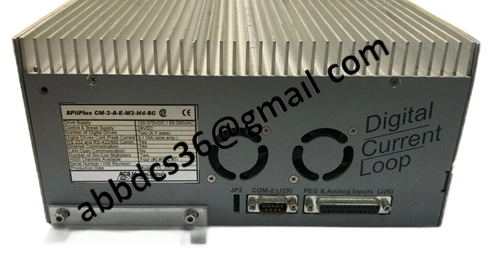

Introduction: ACS CM-2-A-E-M2-H4-H4-XY is an integrated dual axis XY gantry servo control module with built-in drivers, specifically designed for semiconductor precision alignment platforms
Integrated X/Y dual axis drive, single axis continuous 5A, peak 10A sine output
20kHz high-speed servo sampling, combined with vibration suppression algorithm, suppresses platform resonance and shortens stabilization time
Equipped with 2 Sin Cos encoder frequency doubling channels, supporting nanometer level high-precision position reading
Dual HSSI high-speed synchronous interface, capable of external expansion of multi axis drive synchronous operation
Ethernet, RS232, RS422 multiple communication interfaces, low latency docking with industrial control host
Built in gantry decoupling algorithm, XY dual axis synchronous interpolation, high repeat positioning accuracy
Multiple digital IO channels, connected to limit, origin, alarm, and trigger sensing signals
Integrated multiple hardware protections for overcurrent, overvoltage, short circuit, overheating, and encoder disconnection
Metal fully shielded shell, isolates production line RF electromagnetic interference, and ensures no drift in motion signals
Panel status indicator light for intuitive viewing of power supply, communication, and shaft fault information
Comes with simple PLC logic, capable of independently handling equipment interlocking and process triggering actions
Equipped with SPiiPlus debugging software, one click automatic PID tuning, convenient calibration
Compact integrated body, rail installation, saving internal space of the cabinet
Industrial wide temperature element device, supporting continuous operation of 7 × 24-hour dust-free workshop
Compatible with wafer inspection, optical alignment, laser processing XY precision gantry platform
Conclusion: ACS CM-2-A-E-M2-H4-H4-XY synchronous control is stable and has excellent positioning accuracy. It is a core integrated operation and control spare part for high-precision automation equipment
