ACS CMba2B24N0NEBC240-ORB1 motion control module
Product Manual：
ACS CMba2B24N0NEBC240-ORB1 motion control module
Introduction: ACS CMba2B24N0NEBC240-ORB1 is a high-precision multi axis motion control module with fast positioning response, suitable for semiconductor wafer handling and photolithography precision platform equipment.
Support multi axis synchronous drive, multi platform collaborative operation without deviation
Closed loop servo control algorithm with extremely high repeat positioning accuracy
Optoelectronic isolation input and output, isolating workshop electromagnetic radio frequency interference
Integrated multiple protections for overcurrent, overvoltage, overheating, and overload
Status indicator lights display running, alarm, and fault information in different zones
High speed bus communication allows for quick integration with equipment control systems
Pulse and bus dual signal output, compatible with multiple servo motors
Power on self-test of the entire machine, automatically identifying shaft jamming and drive faults
Compact board structure, saving installation space for electrical control cabinets
24V standard industrial power supply, compatible with dust-free workshop power supply system
Built in multiple motion curves, smooth acceleration and deceleration without impact
Can store multiple sets of motion programs and quickly switch production processes
Wide temperature working design, long-term stable operation of constant temperature clean production line
Automatic storage of fault logs for convenient equipment maintenance and troubleshooting
Original precision components, resistant to dust and slight vibrations, with a long lifespan
Conclusion: ACS CMba2B24N0NEBC240-ORB1 has precise control and strong stability, and is the core control spare part of precision automation displacement platform.

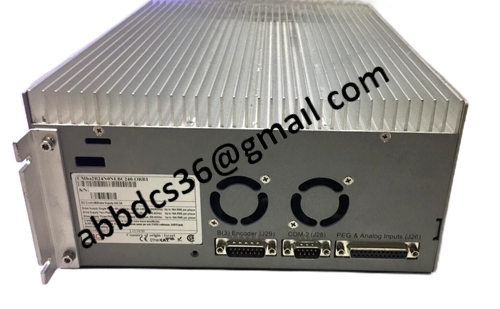

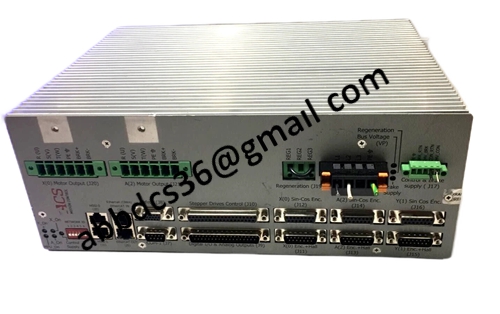

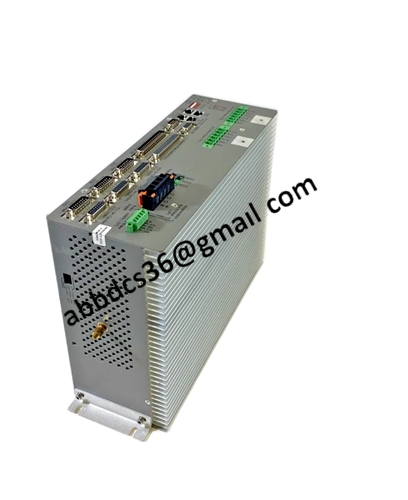

Product detailed pictures：
CMba2B24N0NEBC 240-ORB1
product video
