ACS SB-14221-100/LF motion control module

Product Manual：

ACS SB-14221-100/LF motion control module
ACS SB-14221-100/LF is a motion control module specifically designed for semiconductor precision platforms, with high positioning accuracy and stable multi axis synchronous operation.
1. Compatible with the entire ACS servo system, with high compatibility from the original factory
2. Equipped with ServoBoost algorithm, automatic compensation for load changes
3. Nano level positioning control with small tracking error
4. Support multi axis synchronous linkage, smooth motion trajectory
5. Built in vibration suppression algorithm effectively suppresses platform resonance
6. LF halogen-free environmentally friendly board, suitable for dust-free workshops
7. High speed Ethernet communication with low latency for instruction transmission

8. Multiple digital IO channels, connecting sensors and valves
9. Multiple overcurrent and overvoltage protection, automatic shutdown in case of malfunction
10. Compact board structure, space saving for rail installation
11. Wide voltage DC power supply, withstand voltage fluctuations
12. Fully shielded circuit, resistant to electromagnetic and radio frequency interference
13. Support safe zone restrictions to avoid device collisions
14. Standardized interface, easy disassembly and maintenance
15. Industrial wide temperature design, stable long-term continuous operation
In summary, the ACS SB-14221-100/LF motion control module has high precision and strong vibration resistance, making it a core control component for precision stages in lithography and detection equipment.

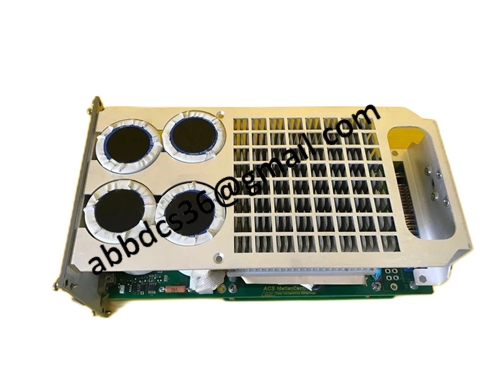

Product detailed pictures：

SB-14221-100/LF
