Allen Bradley 280D-F12Z-10B-CR Start Control Module
Product Manual：
280D-F12Z-10B-CR is an AB ArmorStart distributed motor starting module, which is installed nearby to control the start and stop of three-phase motors.
1. Model 280D-F12Z-10B-CR, 280 series integrated motor controller.
2. The main circuit is suitable for three-phase voltage ranging from 200 to 575V, with a rated working current of 10A.
3.24VDC control circuit, overload setting range 0.5-2.5A.
4. Integrate DeviceNet bus and connect to PLC to achieve remote start stop control.
5. IP67 high protection shell, dustproof and waterproof, can adapt to flushing conditions.
6. Local HOA gear switching, with three control modes: remote, manual, and automatic.
7. Integrate multiple hardware protection mechanisms for short circuit, overload, and stalling.
8. Comes with local IO ports and relies on DeviceLogix to execute simple on-site logic.
9. The equipment is assembled close to the motor to shorten the power cable and reduce line losses.
10. Panel LED indicator light, real-time view of power failure operation status.
11. Sealed cable interface, stable and reliable wiring in damp and dusty factory areas.
Operating temperature range of 12.0-45 ℃, anti vibration adapted to complex working conditions of the assembly line.
Under 13.480V operating conditions, it can drive fans and conveying motors up to 4kW.
14. Modular integrated design, saving time and effort in on-site spare parts replacement.
15. Widely supporting automated production lines for food machinery, material conveying, and water treatment.
Overall, 280D-F12Z-10B-CR has excellent protection and convenient networking, making it a commonly used spare part for distributed motor control.

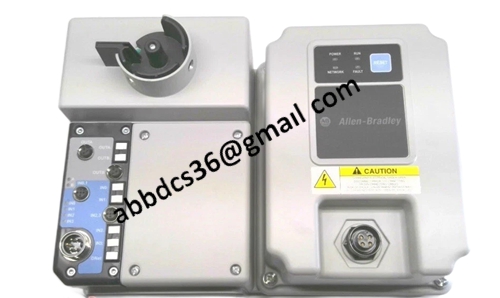

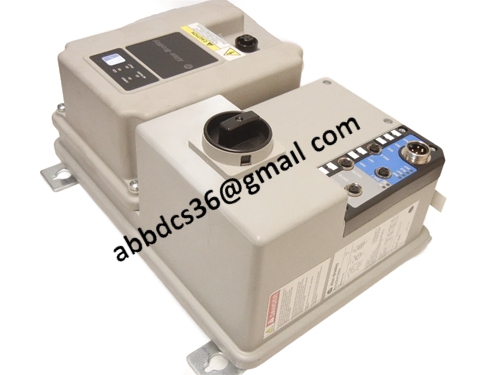

Product detailed pictures：
280D-F12Z-10B-CR
