AMAT 0100-03340 Communication Module

Product Manual：

AMAT 0100-03340 Communication Module
Introduction: AMAT 0100-03340 semiconductor equipment communication board, realizing data exchange between the host and cavity accessories.
Multi protocol communication channel, transmitting process, temperature, and RF data
Signal isolation circuit to resist electromagnetic interference in the workshop
Real time sending and receiving of instructions to ensure equipment linkage and synchronization
Equipped with data verification to reduce signal packet loss and distortion
Equipped with overvoltage, short circuit, and surge protection
Status indicator light, quickly troubleshoot communication issues
Standard slot for direct insertion into the chassis, easy to disassemble and assemble

24V DC power supply, compatible with machine power supply system
Industrial wide temperature components, stable operation near the cavity
Multi layer shielded PCB, strong and weak signal partition wiring
Support hot swappable maintenance with short downtime
Suitable for etching and thin film deposition equipment series
Standardized interface, direct replacement of spare parts of the same model
Comes with fault records for easy maintenance and traceability
Factory online aging test, long-term stable operation
Conclusion: AMAT 0100-03340 has stable and reliable transmission, and is a core spare part for semiconductor equipment control communication.

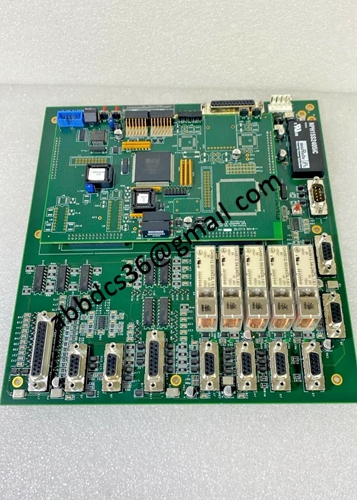

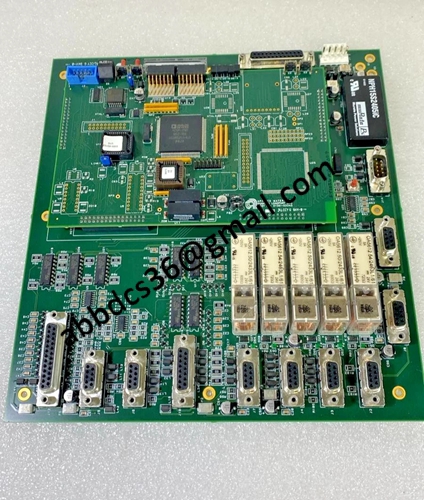

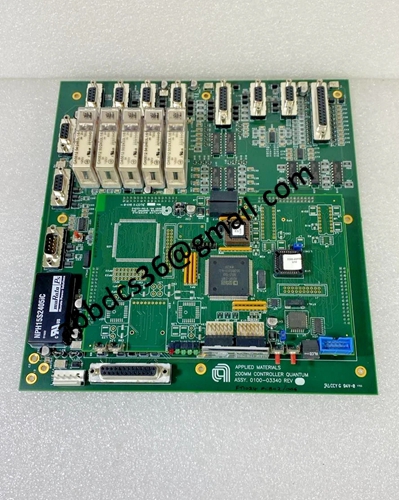

Product detailed pictures：

0100-03340

product video
