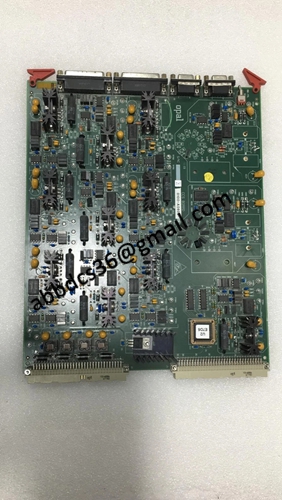

AMAT 0100-A0801 Controller Module

Product Manual：

AMAT 0100-A0801 Controller Module
AMAT 0100-A0801 is a dedicated main control module for application materials semiconductor equipment
Built in high-speed computing chip, real-time execution of wafer process control logic
Multi channel IO acquisition, synchronized reading of cavity sensing signals
Hardware electrical isolation to resist electromagnetic interference from production lines
VME standard plug-in card structure, easy to disassemble and replace
Wide temperature industrial grade design, suitable for clean workshop conditions
Equipped with hardware self-test, automatic fault reporting and alarm
Multiple sets of industrial communication interfaces, linked with various functional boards
Large capacity storage, storing process formulas and operation logs

Reinforced sheet metal for earthquake resistance, suitable for long-term vibration operation of equipment
Multiple overvoltage, overcurrent, and overheat circuit protection
Precision gold-plated circuit with low signal transmission loss
Miniaturized board, saving installation space for control cabinets
Compatible with AMAT etching and deposition series wafer equipment
Support continuous and stable operation 24/7
Summary: The AMAT 0100-A0801 controller has precise computation, anti-interference and durability, and is the core control unit of semiconductor wafer processing equipment.

Product detailed pictures：

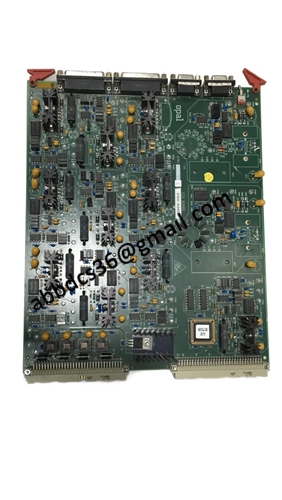

0100-A0801
