AMAT 0190-47303 Input/Output Controller

Product Manual：

AMAT 0190-47303 Input/Output Controller
Introduction: AMAT 0190-47303 is a digital IO control board specifically designed for semiconductor equipment
Multiple digital input/output channels, collecting interlocking signals from cavity sensors
Built in signal isolation circuit to resist workshop RF electromagnetic interference
Gold plated contacts, stable long-term plug-in contact, not easily oxidized
Strong and weak current zoning wiring to reduce short-circuit leakage faults
VME standard slot, directly plug and replace with the same model
Equipped with signal filtering, the transmitted and received signals are pure and free of clutter
Reserve multiple sets of testing points for convenient troubleshooting and calibration

Integrated ESD and surge protection to protect internal components
Panel status indicator light, visually display communication power supply abnormality
Support industrial control standard communication, connect machine master control with MES
Industrial high-temperature resistant substrate, suitable for 7 × 24-hour operation in dust-free workshops
Cache and temporarily store process data, with no loss of records during short-term network outages
The silk screen label is clear, and the disassembly and wiring are not prone to errors
Metal reinforced structure, equipment vibration is not easy to remove welding and break wires
Compatible with etching and deposition series wafer processes
Conclusion: AMAT 0190-47303 has stable signal processing and commonly used IO original spare parts in semiconductor production lines

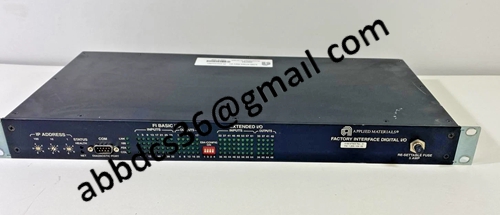

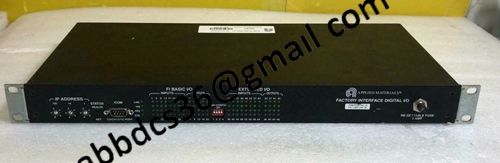

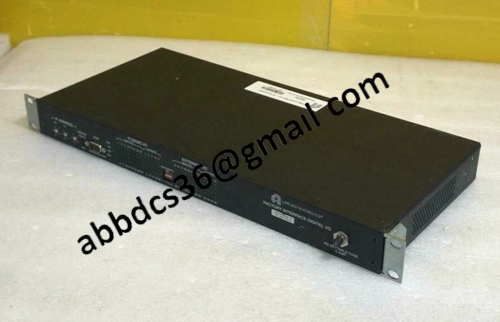

Product detailed pictures：

0190-47303
