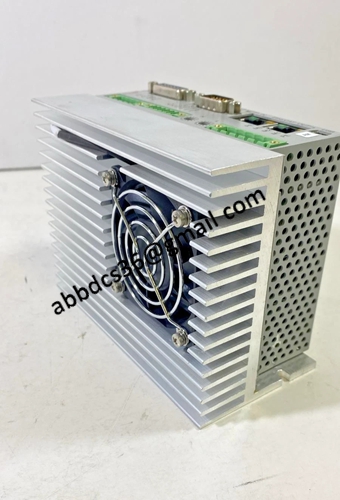

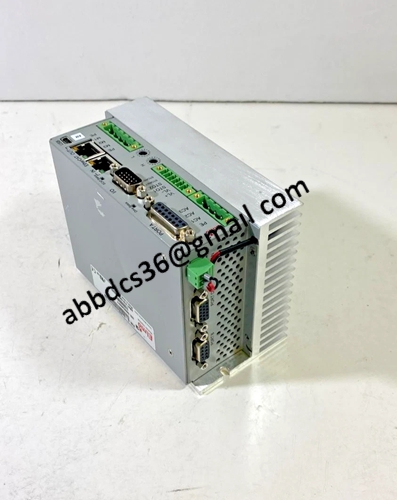

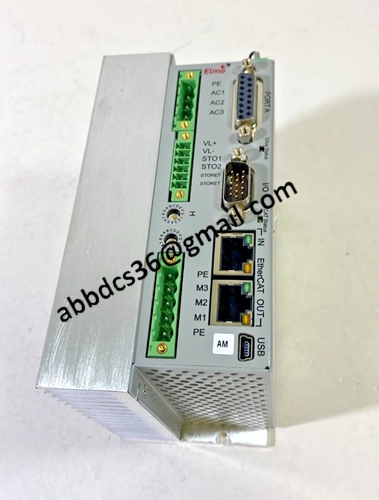

AMAT 1080-02287 Motion Controller

Product Manual：

AMAT 1080-02287 Motion Controller Product Features
AMAT 1080-02287 Adapts Application Material Wafer Handling Mechanism Motion Control
Multi axis synchronous control, high wafer positioning accuracy
Shielding the circuit to resist RF signal interference from the cavity
Closed loop feedback collection, real-time reading of motor position data
Single channel independent protection, faults do not affect the entire machine
High speed pulse output, rapid response to process actions
CPCI standard slot, easy disassembly and assembly of equipment compartment
Gold plated fingers, stable contact with frequent insertion and removal

Industrial heat-resistant board, ensuring long-term stable operation in clean workshops
Reinforced solder pads, resistant to machine vibration and less prone to virtual soldering
Multiple IO points, connected to limit and detection sensors
Equipped with a channel fault light for quick troubleshooting of abnormalities
Original factory specific communication protocol, directly connected to equipment master control
Wide voltage power supply, normal operation with slight fluctuations in the power grid
Unified specifications, direct replacement of controllers of the same model
AMAT 1080-02287 motion controller is a specialized wafer transfer control board for semiconductor thin film equipment

Product detailed pictures：
