Ansaldo 0000-9056-01 Low level Signal Switch Board
Product Manual：
Ansaldo 0000-9056-01 is a low-level signal switch board for DC speed regulation, commonly used for replacing spare parts in industrial control equipment.
Responsible for the conversion and on-off switching of various low-voltage switch signals
Signal photoelectric isolation, isolating on-site electromagnetic clutter interference
Equipped with a voltage stabilizing circuit to buffer the impact of voltage fluctuations in the power grid
Card insertion installation, quick disassembly and replacement of cabinet card slots
Configure status indicator lights to quickly determine circuit on/off faults
Three anti spray coating on the board, dustproof and moisture-proof, suitable for industrial and mining environments
Solid workmanship of surface mount components, resistant to equipment start stop vibration
Wide temperature device selection, stable operation of high and low temperature cabinet working conditions
Reserved testing points for easy maintenance and inspection of circuit voltage levels
Optimize the circuit layout to avoid mutual interference of weak current signals
Cooperate with the main control board to transmit start stop, limit and other switch commands
Multiple signal channels, compatible with various low-voltage contacts on site
Comes with simple overload protection to avoid damage from low-voltage surges
Matching Ansaldo old-fashioned series DC speed regulation device
Factory aging power on test, low failure rate after long-term operation
ending
In summary, 0000-9056-01 has stable signal switching and excellent durability, making it a commonly used maintenance and replacement board for metallurgical and papermaking transmission equipment.

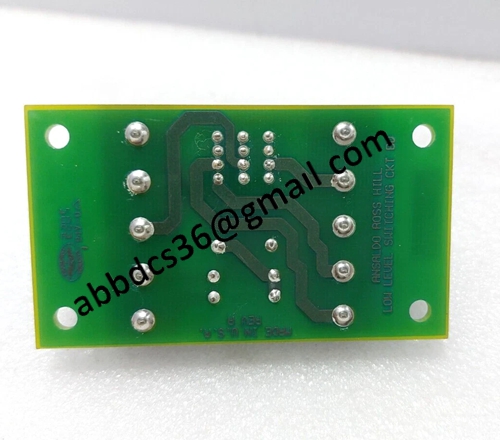

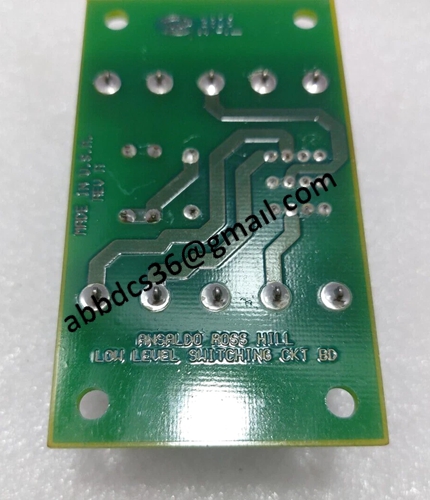

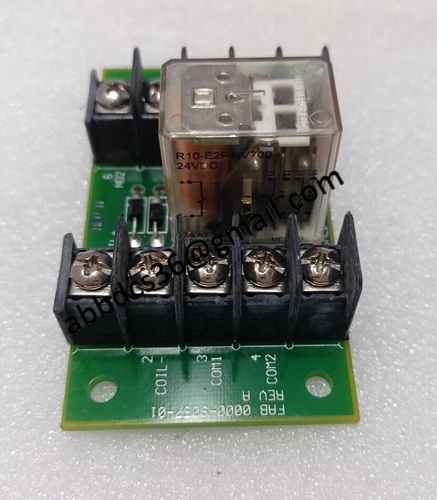

Product detailed pictures：
0000-9056-01
