Ansaldo 0000-9057-01 Printed Circuit Board
Product Manual：
Ansaldo 0000-9057-01 is a printed circuit board for transmission devices, used for spare parts maintenance of industrial control speed control equipment.
Precision PCB circuits reduce signal interference with each other
Surface mount components, earthquake resistant and durable, not easy to solder off
Equipped with a voltage stabilization circuit to adapt to voltage fluctuations in the power grid
Isolation and protection of signal terminals to avoid damage to board components caused by surges
Standard card size, rack can be directly disassembled and replaced
Equipped with status indicator lights for quick troubleshooting of operational faults
Three proof coating on the board, dustproof and moisture-proof, suitable for industrial and mining environments
Choose wide temperature components to ensure stable operation of high and low temperature cabinets
Reserved maintenance measurement points for convenient on-site line inspection
Onboard storage component, saving device settings parameters
Optimize copper foil routing to reduce the probability of open circuit and short circuit
Compatible with Ansaldo series DC drive equipment
Reserve debugging terminals and fine tune operating parameters as needed
Cooperate with the main control board to complete sampling and control transmission
Factory aging test, good long-term stability during operation
ending
In summary, 0000-9057-01 runs reliably and is a commonly used replacement circuit board for old Ansaldo transmission equipment.

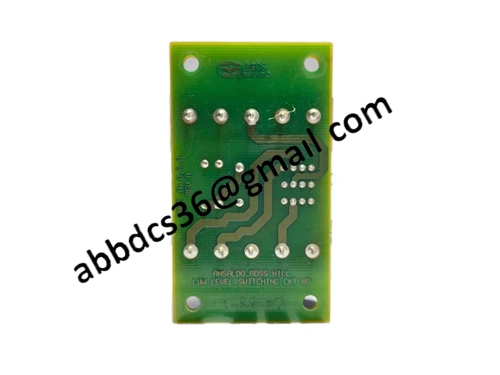

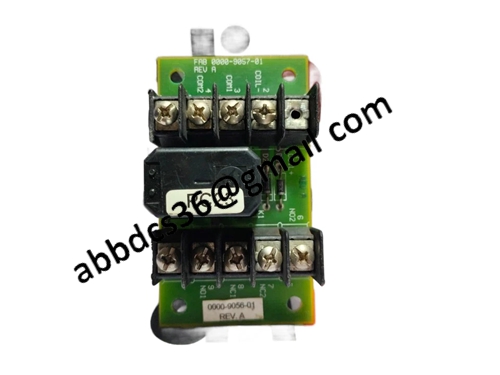

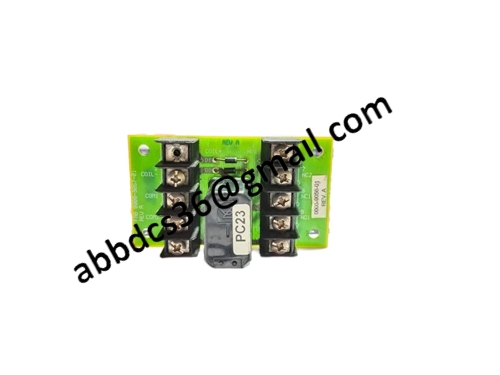

Product detailed pictures：
0000-9057-01
