Ansaldo 0000-9403-00 signal conditioning board
Product Manual：
Ansaldo 0000-9403-00 is a dedicated signal conditioning board for speed control systems, which is used for equipment maintenance and replacement parts.
Regularly amplify the voltage and current analog signals collected on site
Input circuit optoelectronic isolation, blocking on-site electromagnetic interference
Built in voltage regulator circuit, adapted to voltage fluctuations in the power grid
Plug in card design, easy to disassemble and replace rack
Equipped with status indicator lights for quick troubleshooting of channel faults
Three proof treatment for board surface, dustproof and moisture-proof, suitable for industrial and mining environments
Surface mount components, capable of withstanding device start stop vibrations
Wide temperature components, stable operation in high and low temperature environments
Reserve test points for convenient on-site maintenance and measurement
Onboard adjustable resistor, on-site calibration of signal zero and gain
Filter out clutter interference and improve the accuracy of sampling signals
Multi channel input, compatible with multiple sensing signals
Cooperate with the main control board to complete signal transmission and closed-loop control
Suitable for Ansaldo series DC speed control machine
Factory aging testing, with few long-term malfunctions
ending
In summary, the 0000-9403-00 signal processing is stable and reliable, making it a regular replacement board for Ansaldo industrial transmission equipment.

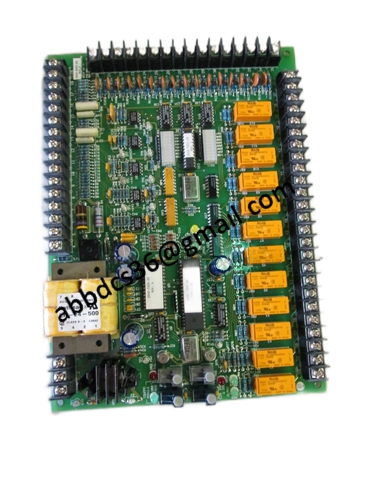

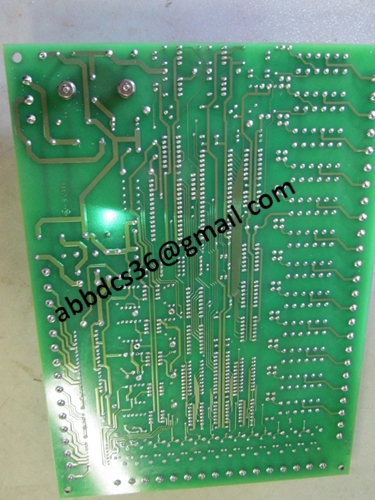

Product detailed pictures：
0000-9403-00
