AP-2119A-S-PBF electronic board
Product Manual：
AP-219A-S-PBF electronic board
AP-219A-S-PBF is a lead-free printed electronic board specifically designed for industrial equipment, equipped with a step-down power supply circuit, suitable for industrial control and semiconductor equipment power supply control.
1. PBF lead-free process, compliant with environmental standards for dust-free workshops
2. Multi layer circuit board design with short wiring and low signal loss
3. Built in synchronous buck power supply circuit, outputting stable 2A current
4. Output voltage accuracy ± 1.5%, small load fluctuation and voltage drop
5. Supports PWM/PFM dual-mode, with lower power consumption during light load operation
6. Integrated soft start function, no voltage surge when powered on
7. Comes with OVP/OCP/overheat multiple circuit protection
8. Onboard EMI shielding layer to resist electromagnetic interference in the workshop
9. 1.2MHz fixed switching frequency, matched with small heat dissipation components
10. Industrial high-temperature resistant substrate, capable of long-term continuous operation without deformation
11. Standardized gold finger slot, easy to plug and install
12. Surface anti-oxidation gold deposition process, contacts are not easily oxidized
13. Reserve multiple sets of testing points for intuitive and efficient troubleshooting
14. Compact board body, space saving for cabinet installation
15. Seismic reinforcement wiring, production line vibration environment is not easy to solder off
In summary, the AP-219A-S-PBF electronic board has stable power supply, complete protection, lead-free and clean compatibility with precision industrial equipment, and is the core circuit accessory for equipment power control.

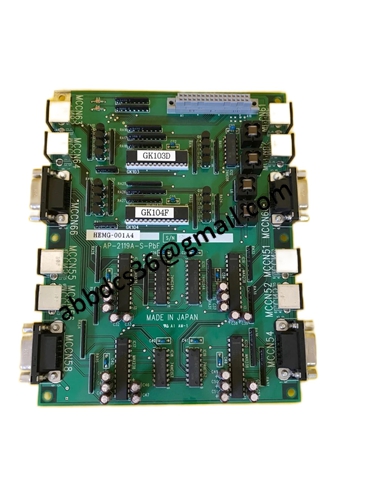

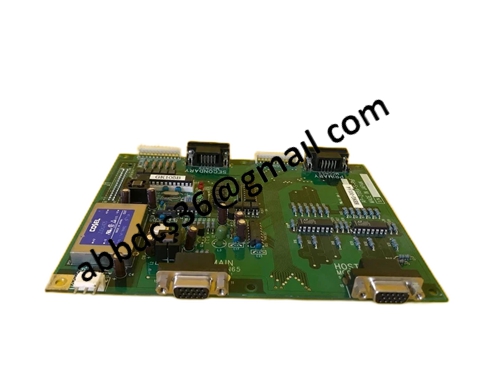

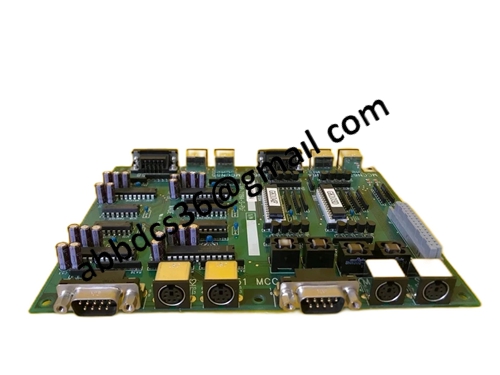

Product detailed pictures：
