B3EA HENF315147R1 Control Board Card
Product Manual：
# Product Features of B3EA HENF315147R1 Control Board
B3EA HENF315147R1 is a control board for the excitation drive system, responsible for signal conditioning, logic processing, and loop drive output.
1. Industrial PCB substrate, with excellent anti-electromagnetic interference performance
2. Multiple signal processing channels, capable of simultaneously processing multiple measurement point signals
3. Built-in signal filtering circuit, reducing on-site interference noise
4. Channel electrical isolation, avoiding mutual interference between circuits
5. Rack slot installation, with simple operation for disassembly, replacement, and maintenance
6. Wide temperature range operation, suitable for high-temperature environments inside the control cabinet
7. Hardware self-check function, enabling quick fault location
8. B3EA HENF315147R1 has sufficient output drive capability, capable of connecting to the rear power unit
9. Board welding process is stable, reducing false soldering faults
10. Supports 7×24-hour uninterrupted long-term operation
11. High signal conversion accuracy, timely output response
12. Compatible with the same series excitation drive equipment, with direct replacement of spare parts
13. Single board card replacement, without requiring the entire machine to be shut down
14. Resistant to vibration, meeting the requirements for industrial site use in power plants
15. B3EA HENF315147R1 board card specifications are standard, saving installation space in the cabinet
In summary, B3EA HENF315147R1 operates stably and is mainly used in generator set excitation and large power drive control systems.

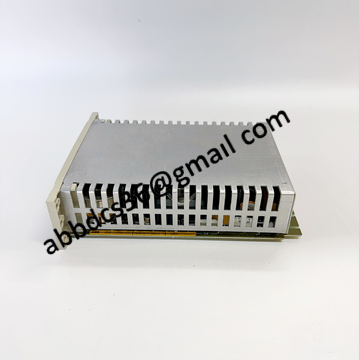

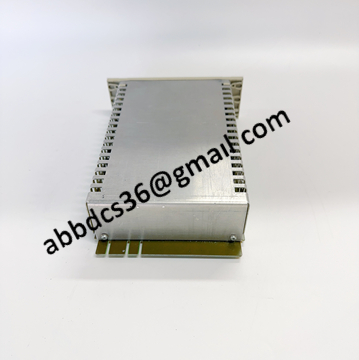

Product detailed pictures：
B3EA HENF315147R1
