Berger Lahr TLC411F Industrial Servo Drive Module
Product Manual：
Berger Lahr TLC411F Industrial Servo Drive Module
Opening: Berger Lahr TLC411F (under Schneider) is an industrial grade high-performance stepper/servo drive module, compatible with two-phase hybrid stepper motors, used in precision motion control scenarios, providing stable torque and precise positioning capabilities.
1. Model TLC411F, original Berger Lahr, currently under Schneider Electric.
2. Input voltage 115/230VAC optional, compatible with industrial standard power supply, 50/60Hz.
3. The maximum phase current is adjustable from 1-4.5A, with constant current PWM control, suitable for various power motors.
4. Supports full step, half step, 1/4, and 1/8 micro step, with flexible resolution and high positioning accuracy.
5. Pulse (STEP)/Direction (DIR) control interface, compatible with TTL/differential signals.
6. Integrated RS485 communication, supports network control, and facilitates upper computer linkage.
7. Four fold protection for overvoltage, overcurrent, overheating, and short circuit, with a fault LED visual alarm.
8. Industrial wide temperature design, anti vibration, anti EMC interference, suitable for harsh workshop environments.
9. The metal shell has excellent heat dissipation, IP54 protection, dust and oil resistance, and strong durability.
10. Standard rail installation, plug-in wiring, convenient on-site disassembly and maintenance.
11. Suitable for two-phase/hybrid stepper motors, with stable output torque and smooth low-speed operation.
12. Compact size, light weight, saves installation space inside the cabinet, and flexible layout.
13. Built in fault self check and status feedback, quickly locate anomalies, and reduce downtime risks.
14. Widely used in scenarios such as machine tools, precision conveyors, semiconductor equipment, and industrial testing.
15. Original genuine product, strong compatibility, no need for significant system changes for replacement, stable and reliable operation.
Conclusion: TLC411F, with its core advantages of high-precision control, strong stability, comprehensive protection, and wide adaptability, is a reliable driving unit for industrial precision motion control.

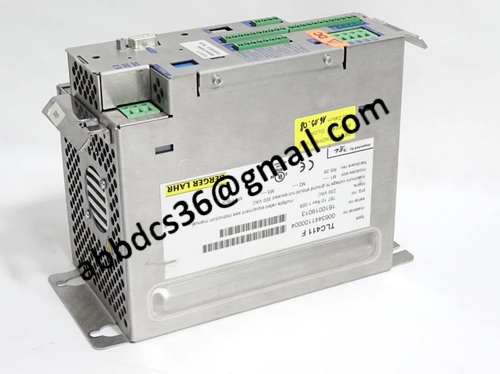

Product detailed pictures：
TLC411F
