BOSCH SM50/100-T servo drive

Product Manual：

SM50/100-T is an old Bosch busbar servo drive, equipped with a power supply unit to drive the servo motor.
1. Model SM50/100-T, SERVODYN-T series power module.
2. DC bus 520V power supply, continuous 50A, peak 100A output.
3. Support closed-loop control of torque, speed, and position.
4. Compatible with feedback signals from various encoders such as rotary encoders and incremental encoders.
5. Optional DP and CANopen buses can be connected to the upper control system.
6. Built in multiple protections, automatic shutdown and locking for overcurrent, overheating, and short circuit.
7. Standard slot installation for cabinets, used inside IP20 cabinets.
8. Equipped with air cooling for stable temperature rise control under full load for a long time.
9. Multiple drivers share a DC bus to recover braking energy consumption.

The working range is from 10 to 20 to 60 ℃, suitable for the changing environment in the workshop.
11. Compatible with Bosch MAC series servo motors and original machine tool accessories.
12. Panel fault indicator light for quick troubleshooting of abnormal driving faults.
13. The internal circuit technology is mature, and the equipment has a low failure rate during continuous operation.
14. Plug and unplug signal terminals, easy and fast maintenance, disassembly, and wiring.
15. It is commonly used for repairing and replacing old CNC equipment and packaging machinery.
Overall, SM50/100-T has abundant output and precise control, making it a commonly used spare part for heavy-duty automation equipment.

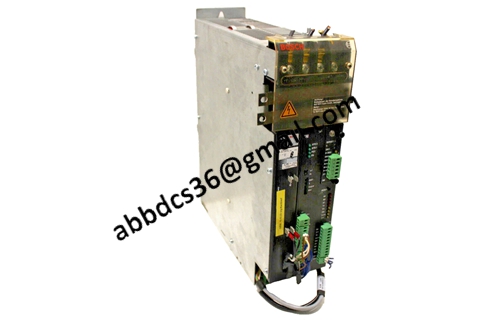

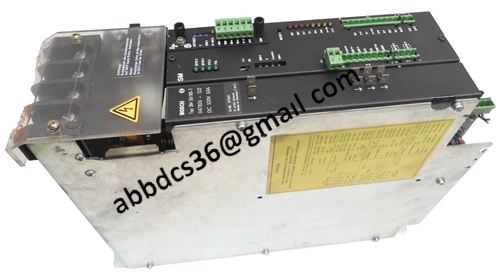

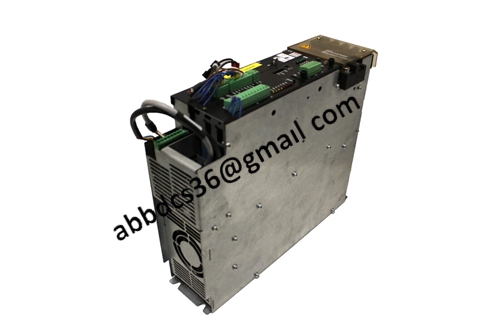

Product detailed pictures：
