B&R 7EX470.50 Bus Controller

Product Manual：

B&R 7EX470.50-1 (EX470) Bus Controller

7EX470.50-1 is a CAN bus controller module in the B&R System 2003 series, used to achieve communication and data exchange between remote I/O systems and controllers.

Product Features:

Core control module for CAN bus communication
Belonging to B&R System 2003 distributed I/O system
Support dual CAN interface communication structure
Interface electrical isolation to improve system safety
Support node number and baud rate dialing settings
Suitable for remote I/O data acquisition and control
Support periodic and event driven data transmission
Can achieve input state upload and output control
Equipped with network communication diagnostic function
Support LED status indication of operation status
Suitable for multi node CAN network topology
Industrial grade design, strong anti-interference ability
Supports 24V DC power supply
Can be used in conjunction with various B&R I/O modules
Modular structure for easy system expansion and maintenance

Summary:
The B&R 7EX470.50-1 bus controller is mainly used to build a CAN communication network in distributed control systems, and is a key communication module that connects the controller with remote I/O devices.

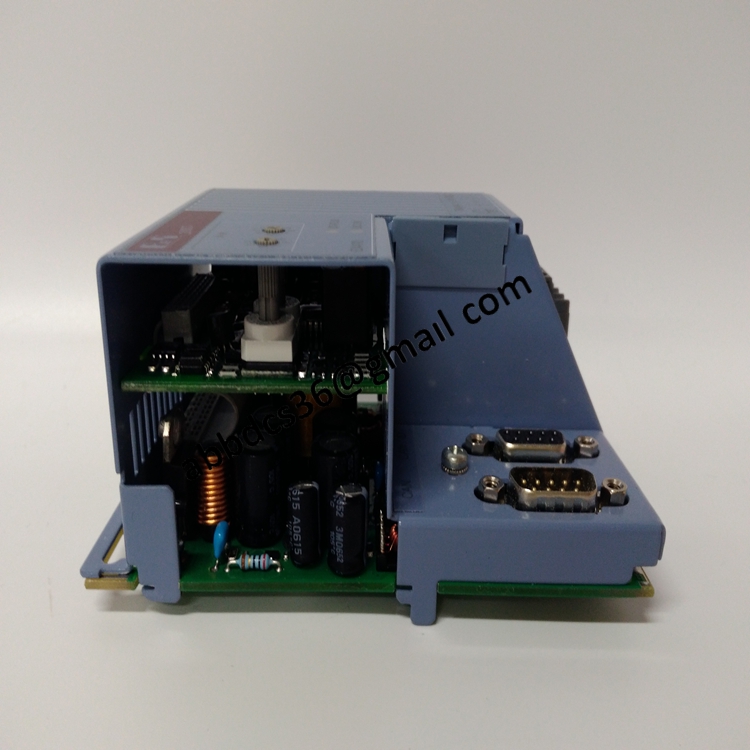

Product detailed pictures：

7EX470.50
