CBC11-P 3BDH000734R1 control module

Product Manual：

CBC11-P 3BDH000734R1 control module
1. CBC11-P is compatible with ABB Symphony Plus complete DCS control system
2. 3BDH000734R1 supports flexible switching between 7/14 channels
3. Group electrical isolation to avoid interference from on-site grounding loops
4. Can directly drive valves, solenoid valves, and motor actuator equipment
5. Comes with transmitter power output, no need for additional external power supply
6. Both closed-loop and open-loop control can be adapted, with precise and stable process control
7. The hardware comes with overvoltage and overcurrent protection, making it less likely to be damaged if the circuit is misconnected

8. Backboard buckle installation, quick disassembly and assembly, simple wiring fixation
9. Industrial wide temperature design, stable and continuous operation under high and low temperature conditions
10. Single channel fault independent isolation, will not interfere with other channels
11. Real time hardware self-test, quickly reporting line and module faults
12. Compatible with relay linkage control and adaptable to various on-site wiring
13. Stable communication docking, quick response to control command issuance
14. The overall structure is compact, occupying little installation space in the control cabinet
15. Compliant with industrial environmental standards and suitable for thermal power and chemical water treatment scenarios
In summary, CBC11-P 3BDH000734R1 is suitable for industrial process closed-loop control, with stable operation and adequate protection.

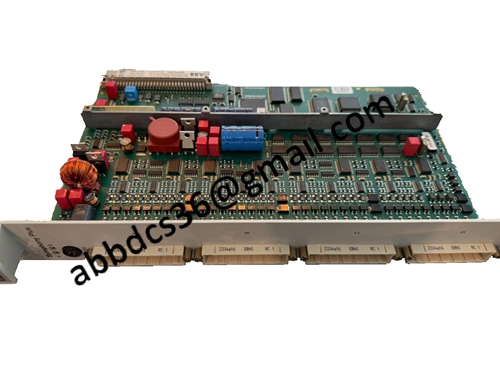

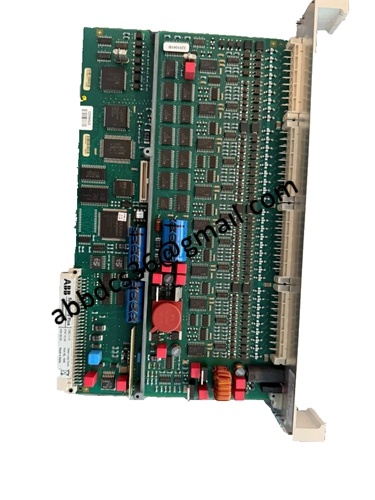

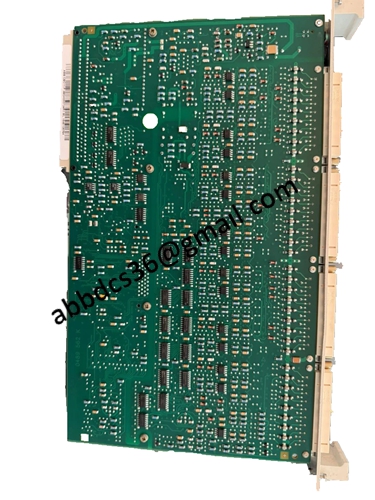

Product detailed pictures：

CBC11-P 3BDH000734R1
