CI830 3BSE013252R1 communication interface
Product Manual：
CI830 3BSE013252R1 Communication Interface Module
I. Overview
CI830 (3BSE013252R1) is a communication interface module in ABB S800 I/O system, mainly used for communication connection between S800 I/O substation and upper level controller (such as AC 800M controller), realizing data exchange and network communication management of distributed I/O system.
2、 Main functions
Implement communication connection between AC 800M controller and S800 I/O substation
Support industrial fieldbus data transmission
Responsible for collecting and distributing I/O data
Implement communication between the control system and remote I/O modules
Support modular I/O station expansion
Processing real-time data exchange and refresh
Support redundant communication configuration (system level)
Provide network communication status monitoring
Support system diagnosis and fault feedback
Used for building distributed control system architecture
3、 Module Features
Industrial grade design, suitable for continuous operation environment
High communication stability and strong real-time performance
Support large-scale I/O expansion system
Modular structure for easy system expansion
Strong anti-interference ability
Support redundant architecture to improve reliability
Highly compatible with ABB AC 800M system
Support online diagnosis and maintenance
High data transmission efficiency
Commonly used in process control systems such as power and chemical engineering
4、 Conclusion
This module is mainly used for I/O communication and data exchange in ABB distributed control systems, and is an important communication interface unit for realizing the interconnection between controllers and field devices.
Product detailed pictures：

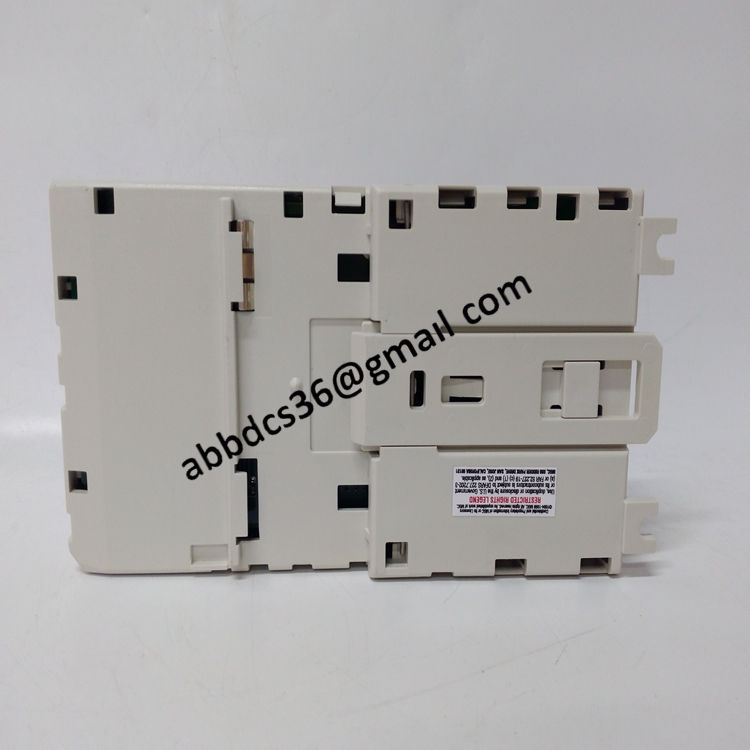

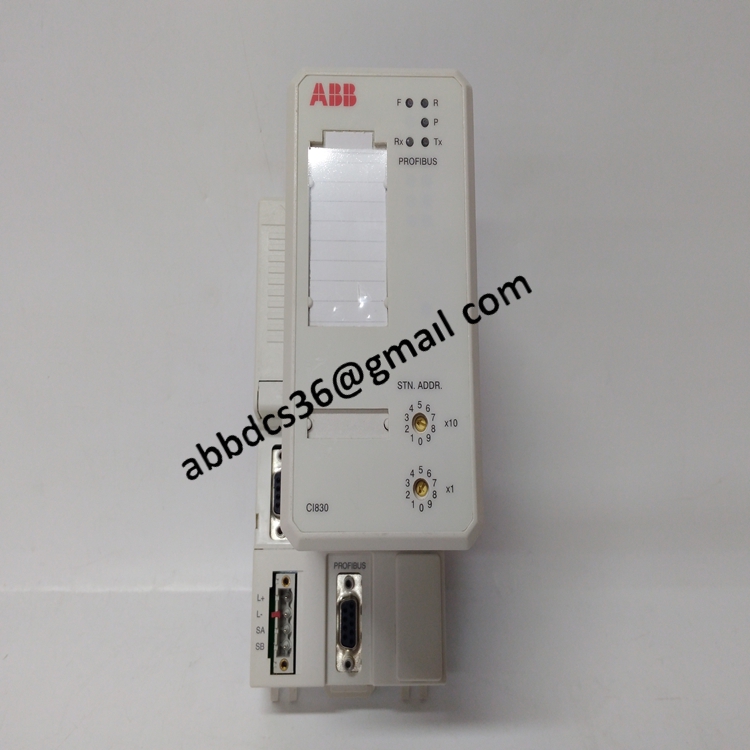

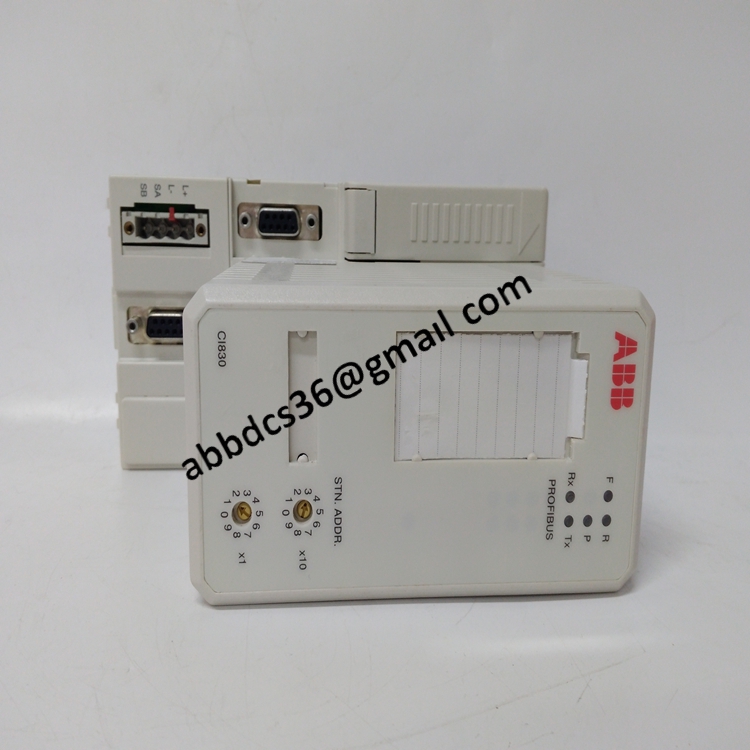

CI830 3BSE013252R1
