CSA463AE HIEE400103R0001 Controller Module
Product Manual：
CSA463AE HIEE400103R0001 Controller Module
CSA463AE HIEE400103R0001 is a specialized control/monitoring module for industrial DCS/PLC systems under ABB, providing stable control and data acquisition capabilities for industrial automation.
Brand belongs to ABB, model CSA463AE, material number HIEE400103R0001, originating from Sweden.
Compatible with ABB DCS and PLC control systems, serving as the core control/monitoring unit.
The power supply standard is 24VDC, suitable for industrial site DC power supply environment.
Support multi-channel analog/digital signal acquisition, including 16 digital inputs and 8 analog inputs.
Equipped with 16 bit high-precision acquisition resolution, high measurement accuracy, and stable data.
Built in signal filtering and anti-interference circuit, suitable for complex industrial electromagnetic environments.
Support RS-485 and Ethernet communication to achieve system data exchange and remote monitoring.
Working temperature -40 ℃~+70 ℃, wide temperature design suitable for harsh working conditions.
Rack mounted card installation, supports hot swapping, and is easy to maintain.
Onboard status indicator light, displaying real-time operation, alarm, and communication status.
Built in hardware self-test and fault diagnosis, quickly locate module abnormalities.
Supports multiple industrial programming languages such as ladder diagrams and structured text.
Weighing approximately 0.91kg, the structure is compact and saves cabinet space.
Through industrial safety certifications such as CE and UL, it meets international standards.
Widely used in process control and equipment monitoring in industries such as power, petroleum, chemical, and metallurgy.
The CSA463AE HIEE400103R0001 controller module is a key component for achieving precise control and reliable monitoring in ABB industrial automation systems.

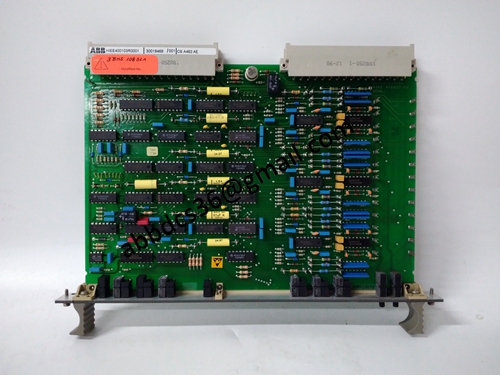

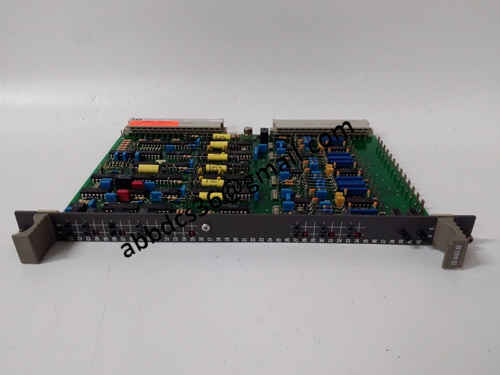

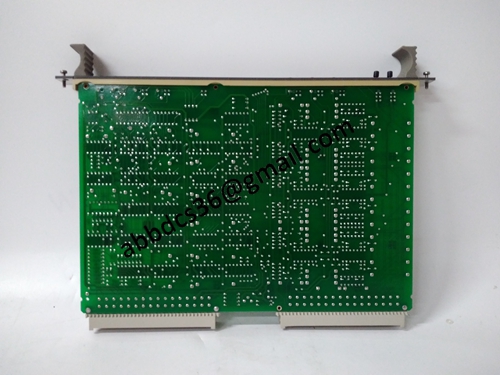

Product detailed pictures：
CSA463AE HIEE400103R0001
