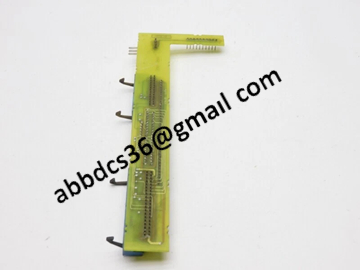

DS200ADPAG1ABB adapter interface PCB board
Product Manual：
#DS200ADPAG1ABB adapter interface PCB board
1. Realize signal adaptation and conversion between different boards.
2. Adapt to turbine control rack, communicate with backplane bus docking.
3. Complete signal level conversion and match various module levels.
4. Electrical isolation design to block interference and crosstalk between circuits.
5. Industrial PCB board, suitable for complex working conditions in power plants.
6. Onboard status indication for easy viewing of interface working status.
7. Expand signal pathways and enhance the system’s external interface capabilities.
8. Hardware self-test identification, quickly locate interface communication faults.
9. Standard slot specifications, easy to install and disassemble with plug-in design.
10. Signal filtering circuit to reduce the impact of on-site electromagnetic interference.
11. Support redundant architecture to ensure stable system signal links.
12. The signal transmission delay is small, meeting the real-time control requirements.
13. Transfer various auxiliary signals and share the load of motherboard cards.
14. The board structure is compact, saving internal space of the rack.
15. Convenient on-site replacement reduces equipment downtime for maintenance.
This DS200ADPAG1ABB adapter interface PCB board is mainly used for power generation turbine control systems, undertaking signal adaptation and conversion work.
