DS200CTBDG1A Communication Module

Product Manual：

#DS200CTBDG1A Communication Module

1. Responsible for controlling the communication and interaction of data within and outside the system.
2. Adapt to the turbine control rack and connect to the backplane bus.
3. Multiple communication channels enable data transmission and reception across multiple sites.
4. Electrical isolation design to reduce external signal interference.
5. Industrial grade components that can withstand complex working conditions in power plants.
6. Onboard status indicator light, providing a visual view of communication status.
7. Hardware fault self check, quickly locate communication abnormalities.

8. Signal filtering processing to resist on-site electromagnetic interference.
9. Standard slot specifications, easy to insert and remove.
10. Complete the transmission of command data between the main control and external devices.
11. Support redundant architecture configuration to ensure communication links.
12. Low transmission delay, meeting the real-time communication needs of industry.
13. Protocol parsing and processing, docking with multiple types of supporting equipment.
14. The module has a compact size, saving internal space in the rack.
15. Convenient on-site replacement and shortened equipment downtime.

This DS200CTBDG1A communication module is applied to the power generation turbine industrial control system, undertaking the data communication relay task of the entire equipment.

Product detailed pictures：

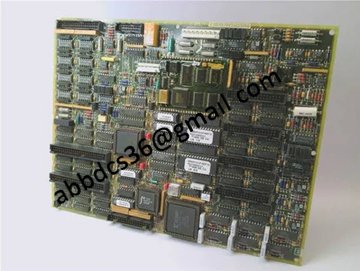

DS200CTBDG1A
