DS200SDCCG1AFD Drive Control Board
Product Manual：
DS200SDCCG1AFD is the SDCC drive control board of the GE Mark V Speedtronic series, serving as the core control unit for the drive/excitation system.
Brand and model: GE General Electric, model DS200SDCCG1AFD, functional abbreviation SDCC.
Series: Mark V Speedtronic, compatible with EX2000/DC2000 and other drive systems.
Core positioning: Drive/excitation main controller, responsible for motor/drive closed-loop control and logic operation.
Processor architecture: 3 16 bit microprocessors for parallel processing of control, communication, and diagnostic tasks.
Memory configuration: Dual port RAM (DPR), supporting simultaneous access by multiple processors.
Power supply specifications: 5V, 15V, 24V DC, powered by the system backplane.
Communication interface: LAN, signal processing interface, supporting system networking and data exchange.
Configuration method: onboard jumper+software tool, flexible adaptation to different driving conditions.
Diagnostic indication: 10 LEDs, displaying fault codes in BCD/binary format.
Physical characteristics: Industrial grade PCB (conformal coating), compatible with Mark V standard cabinet slots.
Control functions: speed/torque closed-loop control, excitation regulation, I/O signal processing, fault diagnosis.
Protection mechanism: overvoltage/overcurrent/short circuit protection, EMI filtering, board level self-test.
Working environment: -40 ℃~+70 ℃, suitable for harsh working conditions in power plants/industrial sites.
Application scenarios: Gas turbine drive, industrial motor drive, excitation control, power plant DCS.
Spare parts attribute: Classic discontinued spare parts, used for maintenance and replacement of old Mark V drive systems.
The DS200SDCCG1AFD, with a three processor parallel architecture and dual port memory, is the core control center of the Mark V drive and excitation system.

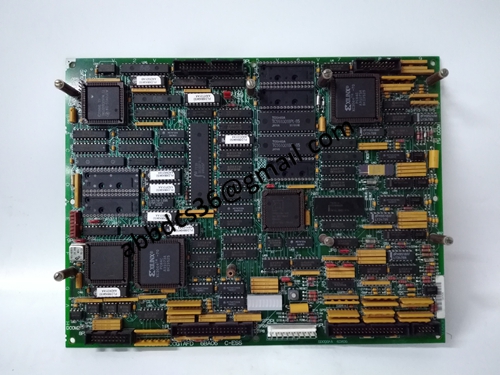

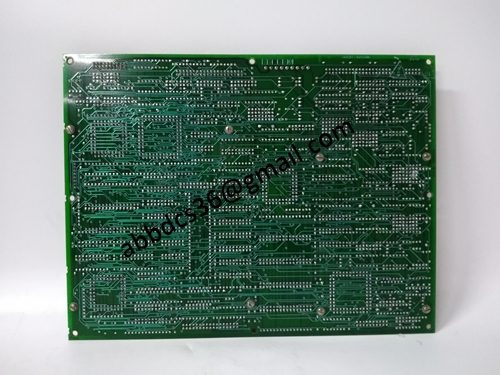

Product detailed pictures：
DS200SDCCG1AFD
product video
