DS215KLDBG1AZZ03A DS200KLDBG1ABC display board
Product Manual：
DS215KLDBG1AZZ03A DS200KLDBG1ABC is an industrial grade LED display board specifically designed for GE Mark V gas turbine control systems, providing stable parameter display and local interaction capabilities for critical operating conditions.
Compatible with GE Mark V/Speedtronic control system, native compatible with system bus.
Integrated 7-digit 16 segment LED digital display, displaying system parameters and status clearly.
Double vertical pin connectors ensure high-speed and stable data transmission.
Equipped with 2 jumper switches, supporting flexible configuration of functions.
Built in capacitor, diode, and resistor array to achieve voltage limitation and surge protection.
Industrial grade PCB design, reinforced drilling edges and corners, and stable installation.
Equipped with unique identification codes such as C-ESS and 6BA01 for easy traceability and maintenance.
Support local button operation, enabling parameter viewing and simple debugging.
Wide temperature range, suitable for industrial environments ranging from -40 ℃ to+85 ℃.
Anti vibration, anti electromagnetic interference, suitable for strong interference scenarios such as power plants and gas turbines.
Compact size (approximately 28 × 21.2 × 2.5cm), standard cabinet installation.
Integrated status indicator light, quickly locate operation and fault status.
Support online diagnosis and cooperate with the system to achieve rapid troubleshooting.
Long life industrial grade components reduce maintenance frequency.
Specially designed for gas turbine control and process monitoring to ensure the operation of critical equipment.
DS215KLDBG1AZZ03A DS200KLDBG1ABC, with its high reliability, strong adaptability, and easy maintenance, has become a key module for the core display and interaction of the GE Mark V system.

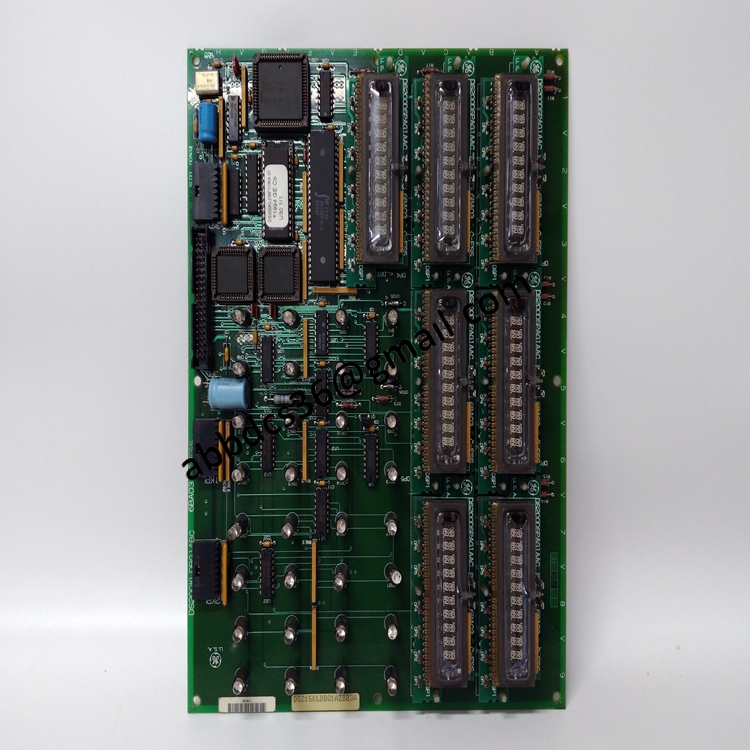

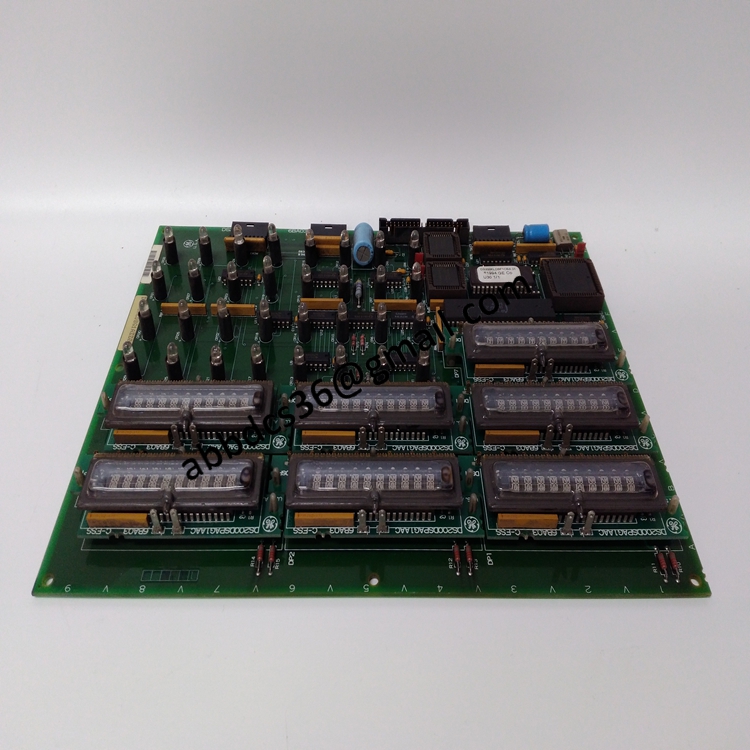

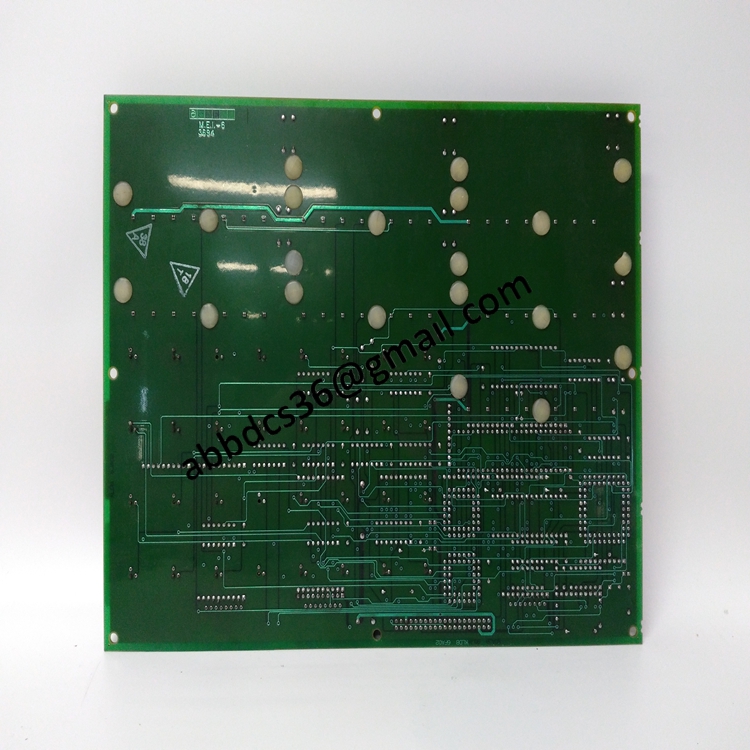

Product detailed pictures：
DS215KLDBG1AZZ03A DS200KLDBG1ABC
