DSQC658 3HAC025779-001 Robot Communication Board
Product Manual：
DSQC658 3HAC025779-001 Robot Communication Board Product Features:
1. Adapt to ABB robot control cabinet to achieve DeviceNet bus communication
2. Dual independent communication channels, both master and slave station modes can be supported
3. Onboard processor, sharing the communication and computing pressure of the robot host
4. PCI slot installation, easy disassembly and replacement inside the cabinet
5. Optoelectronic isolation protection to resist electromagnetic interference in the workshop
6. Multiple baud rates are available, suitable for different bus distances
7. LED status light, quickly identify link and channel faults
8. Can interface with external IO modules, frequency converters, and other on-site devices
9. Onboard cache memory ensures stable data transmission
10. Support bus device parameter reading, writing, and diagnosis
11. Compatible with multiple ABB industrial robot controllers
12. Wide temperature operation, adapted to the temperature environment inside the control cabinet
13. Real time data interaction to meet the timing requirements of robot motion control
14. Industrial grade board materials, resistant to vibration and workshop conditions
15. Simplify the external bus networking of robots and expand their peripheral capabilities
The above are the core characteristics of the DSQC658 3HAC025779-001 robot communication board, which is used for data exchange between ABB robots and external fieldbus devices.

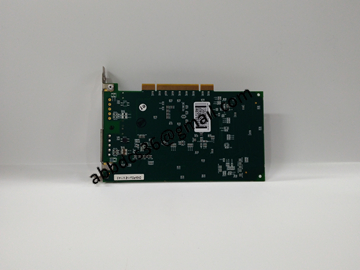

Product detailed pictures：
DSQC658 3HAC025779-001
