E3EC HENF315125R1 Counter Module

Product Manual：

# Product Features of E3EC HENF315125R1 Counter Module

E3EC HENF315125R1 is an industrial high-speed counter module that performs pulse signal acquisition, counting, and frequency measurement.
1. Industrial board design, with strong anti-electromagnetic interference capability
2. High-speed pulse acquisition, fast counting response
3. Supports multiple pulse inputs and is compatible with encoder signals
4. Electrical isolation of input circuits, suppressing external interference
5. Rack slot installation, convenient for insertion, removal, and replacement
6. Wide temperature operation, suitable for internal conditions of control cabinets
7. Hardware status diagnosis, facilitating fault detection

8. E3EC HENF315125R1 has counting lock-in and overflow detection functions
9. Signal filtering processing, filtering out on-site pulse noise
10. Supports 7×24-hour continuous operation
11. High counting accuracy, small data error
12. Compatible with the same series of industrial control systems, spare parts can be directly replaced
13. Single-module replacement, no need to stop the entire machine
14. Resistant to vibration, suitable for factory and power plant site conditions
15. Board card size standard of E3EC HENF315125R1 saves cabinet space

In summary, E3EC HENF315125R1 has reliable performance and is used for speed acquisition, position pulse counting, and other drive excitation control systems.

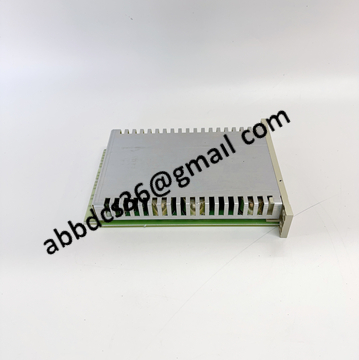

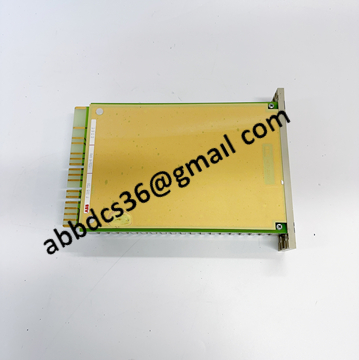

Product detailed pictures：
