ETEL DSMAX212-121-000 Controller Module
Product Manual：
The ETEL DSMAX212-121-000 controller module is a high-precision multi axis motion control board that is compatible with semiconductor precision platform positioning.
1. ETEL DSMAX212-121-000 supports multi axis synchronous linkage and high trajectory interpolation accuracy
2. Equipped with TEB high-speed real-time bus, the communication delay of axis control is extremely low
3. Up to 31 servo drives can be controlled, and multiple devices can work together to ensure stability
4. Built in multiple motion algorithms, supporting PVT and G code trajectory calculation
5. Real time cycle calculation, minimal platform start stop positioning error
6. Comes with Ethernet communication for easy connection to the upper level industrial control host
7. Multi channel digital input and output, capable of achieving equipment interlocking control
8. Built in fault diagnosis program, quickly locate axis control abnormalities
9. Multiple overcurrent and overvoltage protection to prevent damage to the drive and motor
10. Onboard high-capacity storage, capable of storing multiple sets of sports programs
11. Support parallel execution of multiple tasks and synchronous processing of multiple sets of processes
12. Standard PCI slot for direct insertion into industrial control host, easy to install
13. Industrial grade PCB board, resistant to workshop electromagnetic interference
14. Wide temperature stable operation, suitable for long-term continuous operation of the machine
15. Equipped with specialized debugging software, parameter modification and debugging are convenient
The ETEL DSMAX212-121-000 controller module has strong synchronization performance and precise positioning, and is a core control component for multi axis motion in lithography and detection equipment.

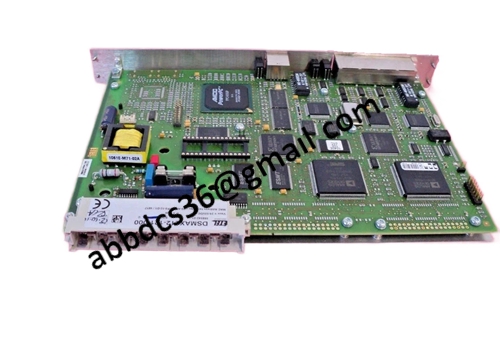

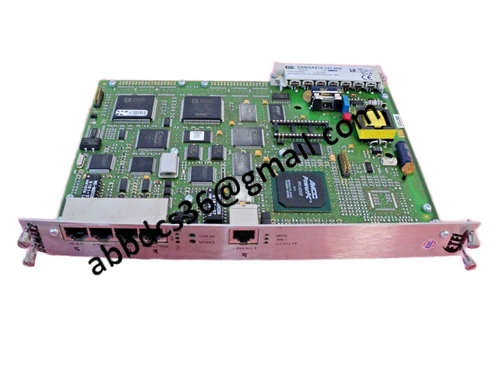

Product detailed pictures：
DSMAX212-121-0 00
