FSEL003 F202174.02 Ethernet module
Product Manual：
SCHENCK FSEL003 F202174.02 Ethernet communication module, VME system network board, realizes network interaction between the main control and external devices.
1. VME chassis slot installation, backplane power supply
2. RJ45 Ethernet port, industrial network data transmission and reception
3. Multi channel serial port, supporting RS232/485 external communication
4. On board protocol processing, complete message parsing and forwarding
5. Hardware data verification to ensure stable communication
6. Panel LED displays power, link, and fault status
7. Hardware watchdog, automatic reset in case of abnormalities
8. Support hot plugging and online replacement
9. Metal shell, anti vibration structure
10. Circuit board coating, resistant to dust environment
11. Can be connected to upper level monitoring and DCS systems
12. Support remote reading of device operating parameters
13. Port fault self diagnosis for easy troubleshooting
14. Adapt to the old VME architecture control system
15. Industrial wide temperature range -40~85 ℃ for long-term operation
FSEL003 F202174.02 is commonly used for network communication in Shenke weighing and metallurgical old VME control systems

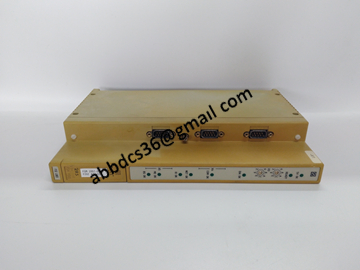

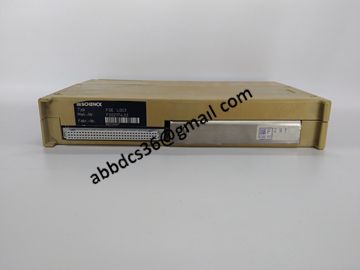

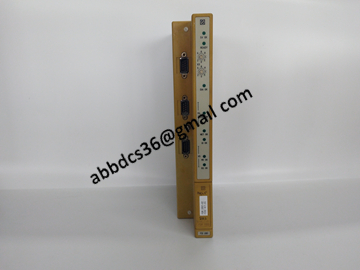

Product detailed pictures：
product video
