GDD360C 3BHE047210R0101 Digital Output Module
Product Manual：
#GDD360C 3BHE047210R0101 Digital Output Module
1. Model: GDD360C 3BHE047217R0101, digital output module
2. Multiple relay output channels, reliable switch signal output
3. Channel electrical isolation to isolate on-site electromagnetic interference
4. Panel LED indicator light, intuitive display of channel working status
5. The output circuit is equipped with overcurrent protection to prevent module damage caused by abnormal load
6. Backboard slot installation, compatible with UNITOL excitation cabinet
7. Fast signal response, meeting the output timing requirements of interlocking protection
8. Comes with channel self-test, can identify output circuit faults
9. Industrial wide temperature design, suitable for complex on-site conditions in power plants
10. Relay contacts have strong load-bearing capacity and can drive external devices
11. High speed communication with the main control module, good command synchronization
12. Interface standardization, simple and convenient configuration and debugging
13. Resist surge impact and withstand on-site voltage fluctuations
14. Plug in structure, no need to modify external wiring for maintenance and replacement
15. Low power consumption, supporting 7 × 24-hour continuous operation
**Summary: GDD360C 3BHE047217R0101 digital output module mainly outputs excitation system interlocking and alarm switch signals, with complete isolation and protection, stable operation, and convenient on-site maintenance.

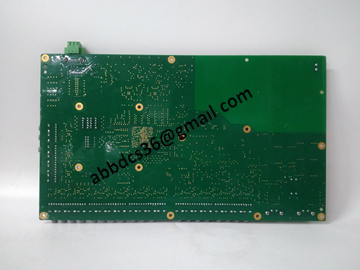

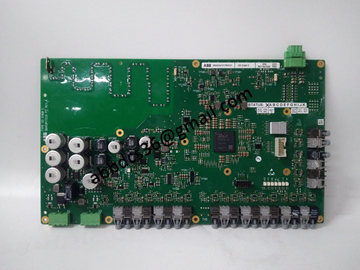

Product detailed pictures：
GDD360C 3BHE047217R0101
