GVC736CE101 3BHE039203R0101 Pulse Input Card

Product Manual：

GVC736CE101 3BHE039203R0101 pulse input card, IGCT unit signal acquisition board, collects pulse and feedback device status.
1. GVC736CE101 receives high-speed pulse signals and collects real-time feedback on IGCT operation
2. Fiber optic interface, strong and weak electrical isolation, strong anti-interference ability
3. Board mounted installation, rack insertion and removal, quick replacement of spare parts
4. LED status light, visually displaying channel faults
5. Fast signal sampling speed, meeting the real-time requirements of the converter system
6. Comes with channel self-test, abnormal output alarm

7. Wide temperature operation, suitable for high voltage variable frequency cabinet environment
8. Onboard filtering circuit, filtering out on-site interference clutter
9. GVC736CE101 converts pulse signals into identifiable data for the main control
10. The connectors are reliable and can withstand cabinet vibrations
11. Support hot swappable maintenance to reduce downtime
12. Complete set of matching IGCT power units of the same series
13. Can report fault information to the upper control system
14. Industrial components, suitable for long-term continuous operation
15. GVC736CE101 is commonly used in high-voltage frequency conversion and generator excitation equipment
Overall, the GVC736CE101 3BHE039203R0101 pulse input card samples quickly and is a power unit signal acquisition board.

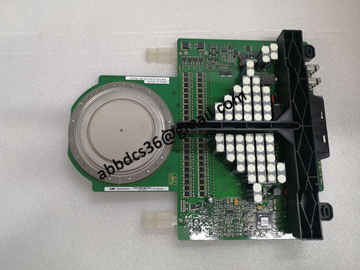

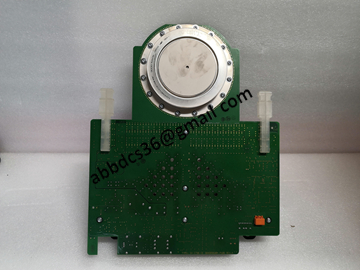

Product detailed pictures：

GVC736CE101 3BHE039203R0101
