HIMA F60DO801 Digital Output Module
Product Manual：
HIMA F60DO801 is a digital output module for SIS system, which controls the actions of on-site solenoid valves and interlocking actuators.
15 characteristics
1. HIMA F60DO801 integrates eight digital output channels and independently controls single point load devices.
2. The channels are electrically isolated from each other, and a single load fault will not affect other circuits.
3. Hardware dual channel voting architecture, compliant with SIL3 security application standards.
4. The guide rail slot installation can be quickly disassembled and installed inside the matching safety rack.
5. Panel configuration status lights provide intuitive feedback on channel output and fault information.
6. Built in short circuit and overload protection, immediately cut off the output circuit when the load is abnormal.
7. 24VDC industrial output standard, suitable for universal voltage of on-site solenoid valves.
8. Circuit board protective coating, dustproof and moisture resistant, suitable for chemical plant environment.
9. Equipped with channel self-test function, fault information is uploaded to the system main control unit.
10. Optimize the circuit layout to effectively resist electromagnetic interference from on-site frequency conversion equipment.
11. Replace directly with the same specifications and models, and there is no need to adjust the on-site wiring during maintenance.
12. Wide temperature component selection ensures smooth and reliable operation under temperature difference conditions.
13. Multiple modules can be combined to flexibly expand the number of output points in the system.
14. Relying on bus and main control communication, receive interlocking instructions to drive on-site equipment.
ending
The original factory ordering cycle is long, and HIMA F60DO801 is a regular replacement spare part for safety control systems.

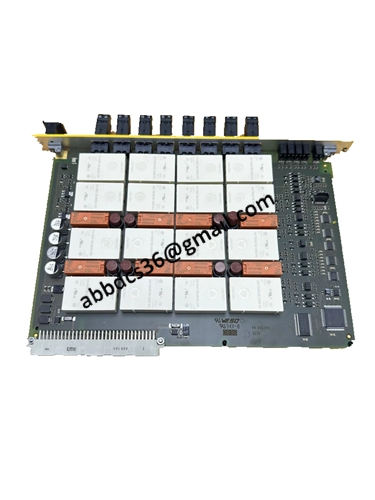

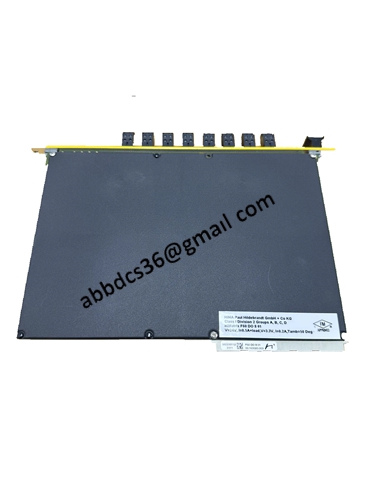

Product detailed pictures：
F60DO801
