HONEYWELL 05704-A-0145 Channel Control Card
Product Manual：
HONEYWELL 05704-A-0145 Channel Control Card
This module belongs to the multi-channel signal control card in the Honeywell System 57 architecture, used for industrial process signal acquisition and processing
Equipped with multi-channel design (commonly four channels), capable of simultaneously connecting multiple on-site detection circuits
Supports 4-20mA standard analog signal input, used to connect various sensors or transmitters
Collect, convert, and process input signals to achieve system level control logic
Internally equipped with signal conditioning and isolation functions, improving anti-interference ability
Can achieve graded alarm control (such as A1, A2, A3, etc.)
Support rack mounted installation of the system, used in conjunction with System 57 backplane communication
Power supply is 18-32V DC industrial standard power supply
Power consumption of approximately 7.5W-8.3W, suitable for long-term continuous operation
Equipped with overcurrent, short circuit and other protection designs to improve system safety
Modular card insertion structure, easy to replace and maintain
Suitable for industrial grade environments, with strong resistance to electromagnetic interference
Can be combined with engineering cards, relay cards, etc. to construct a complete control system
Mainly used for multi-channel signal acquisition and control processing in industrial sites, it is one of the core multi-channel control modules in the System 57 system.

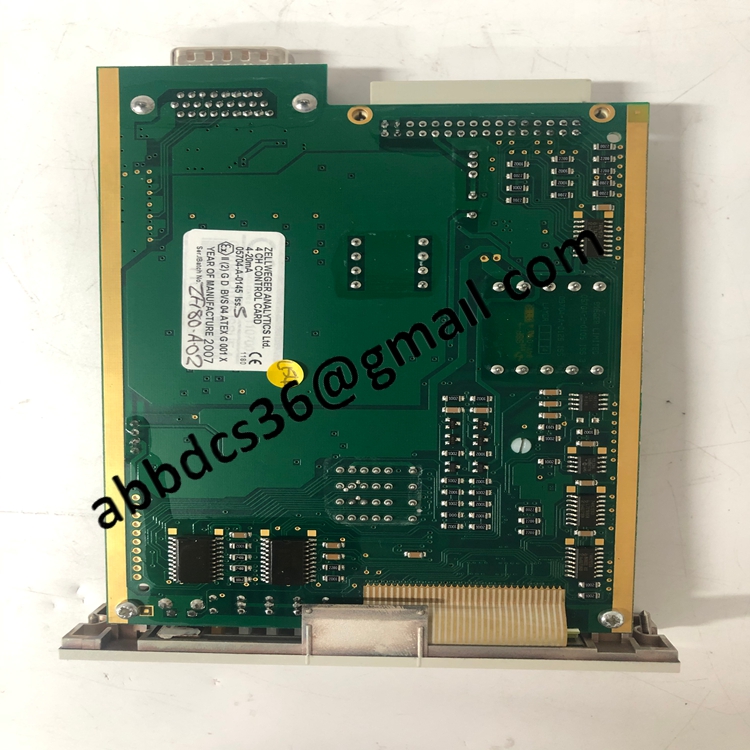

Product detailed pictures：
product video
