HVC-02B 3HNA024966-0103 High Voltage Plate

Product Manual：

HVC-02B 3HNA024966-0103 is an ABB robot specific high-voltage control board designed for high-voltage drive and precision control, with stability, reliability, and strong adaptability.
Adapt to ABB robot high-voltage drive system, accurately control high-voltage circuit
Supports wide high-voltage input and is compatible with 3000V/6000V power supply levels
Built in multiple high-voltage protections, including overvoltage, overcurrent, short circuit, and over temperature protection
High power factor ≥ 0.95, high grid utilization and low losses
Modular and compact design, suitable for installation in robot control cabinets
High speed signal processing, fast response, high control accuracy

Support real-time communication with the robot control unit, with good collaboration
Industrial grade wide temperature operation, suitable for workshop environments ranging from 0 ℃ to 55 ℃
Strong resistance to electromagnetic interference, suitable for complex industrial sites
Built in fault diagnosis, quickly locate abnormalities in high-voltage circuits
Low power design, stable long-term operation, energy-saving
Standard interface design, easy installation and replacement
Through industrial safety certification, high-voltage operation is safe and compliant
ending:
HVC-02B 3HNA024966-00103 high-voltage board has become the core guarantee component of ABB robot high-voltage drive system with high-voltage adaptation, precise control and high reliability characteristics

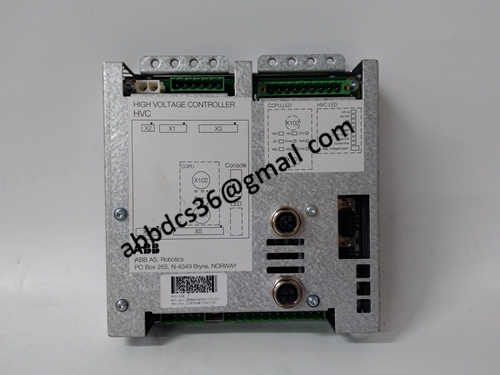

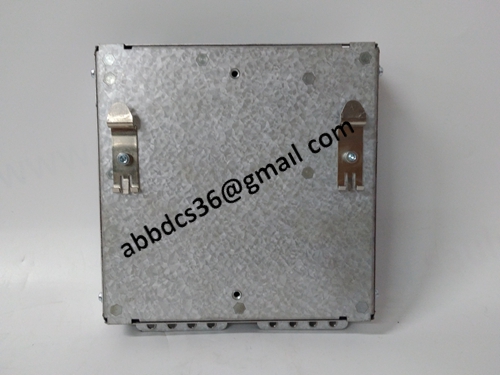

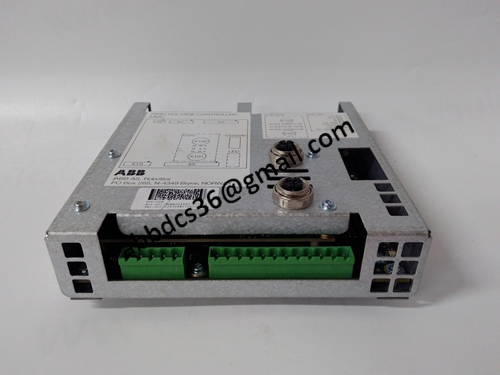

Product detailed pictures：
