HYUNDAI APR-2L-GS Dual Channel Regulating Power Module

Product Manual：

HYUNDAI APR-2L-GS Dual Channel Regulating Power Module
Introduction: HYUNDAI APR-2L-GS is a dual adjustable power supply module for industrial equipment, with two independent stable voltage outputs
Dual channel independent voltage regulation, two outputs do not interfere with each other
Single channel voltage continuously adjustable, suitable for various load power supply needs
Built in filtering circuit, low output ripple, stable power supply
Wide AC input, compatible with the factory’s conventional power supply grid
Each channel has independent current limiting and can be individually set with protective current
Multiple automatic protections for overvoltage, overcurrent, and short circuit
Dual channel can be connected in series/parallel, expanding voltage and current specifications

Small modular structure, space saving for cabinet installation
The metal shell has good heat dissipation and does not experience high temperatures when fully loaded for a long time
Equipped with a working status indicator light for intuitive fault identification
Isolation of strong and weak electrical lines, anti workshop electromagnetic interference
Standard plug-in terminals, easy to disassemble and replace operation
Wide temperature working range, stable operation in high and low temperature environments
Factory aging detection, reliable continuous operation for 7 × 24 hours
Adapt to the power supply of industrial control machines for automation and detection
Conclusion: HYUNDAI APR-2L-GS has flexible regulation and complete protection, and is a universal power supply spare part for industrial equipment with dual circuit power supply

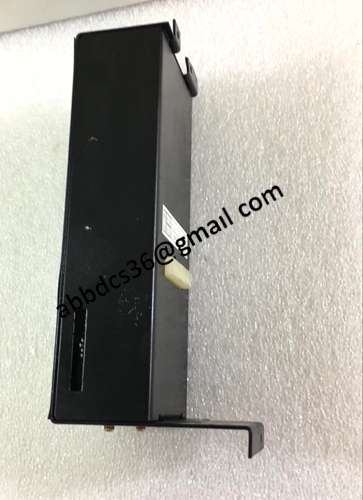

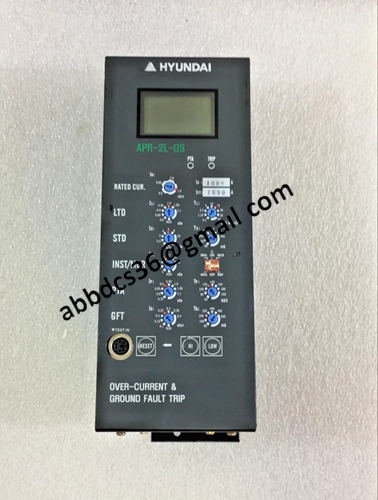

Product detailed pictures：

APR-2L-GS
