IC670PBI001 bus interface unit
Product Manual：
IC670PBI001 bus interface unit
IC670PBI001 is a specialized Profibus DP bus interface unit for GE Fanuc field control. As a communication hub for distributed I/O and main control systems, it is high-speed, stable, and adaptable, ensuring reliable operation of industrial field networking.
The standard Profibus DP protocol seamlessly connects the upper PLC with the on-site I/O station.
Adaptive speed of 9.6Kbps~12Mbps, high-speed real-time data exchange, low response latency.
A single unit can mount up to 8 IC670 series I/O modules, making site expansion flexible and convenient.
Dual 9-pin D-Sub interface, including bus communication port and dedicated interface for handheld programming and debugging.
DIP dip switch allows for one click configuration of site addresses, enabling quick networking without the need for software.
Supports linear and daisy chain bus topologies, compatible with various distributed field cabling architectures.
18-30VDC wide voltage power supply, suitable for industrial 24V DC power supply scenarios, resistant to voltage fluctuations.
Equipped with PWR, RUN, and OK status indicator lights, real-time display of power supply, operation, and communication status.
Built in intelligent fault diagnosis, automatically reporting bus faults such as disconnection, packet loss, and communication abnormalities.
Support analog scaling, range switching, default fault value setting, and adapt to multiple types of signal processing.
Industrial wide temperature working conditions, stable operation at 0-55 ℃, and resistance to harsh electrical environments in factories.
DIN rail buckle installation, compact structure, small cabinet space occupation, easy disassembly and maintenance.
The ultra long average time between failures is 180000 hours, and the long-term continuous operation has extremely high reliability.
Compatible with the entire range of GE Field Control modules and seamlessly integrated with Genius distributed control systems.
In summary, IC670PBI001 has flexible networking, high-speed communication, complete protection, and easy debugging and maintenance.

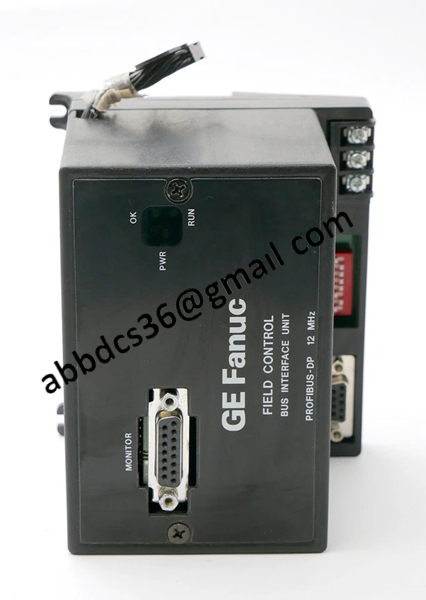

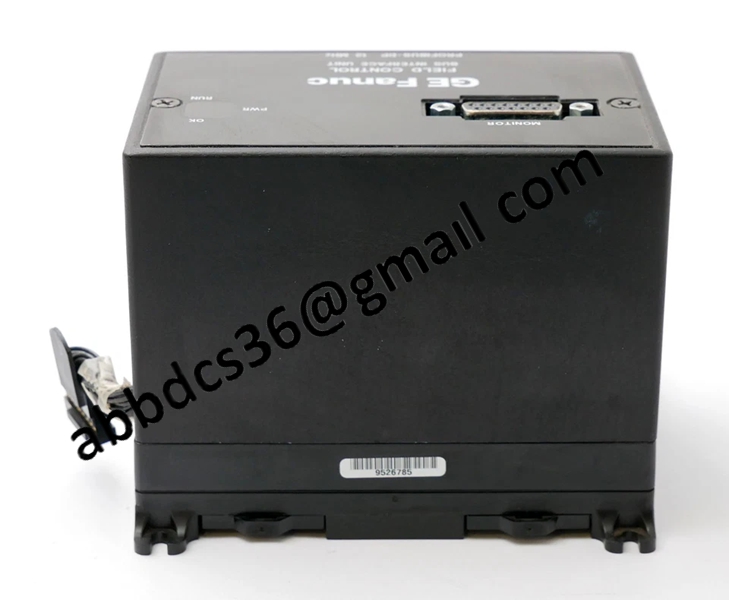

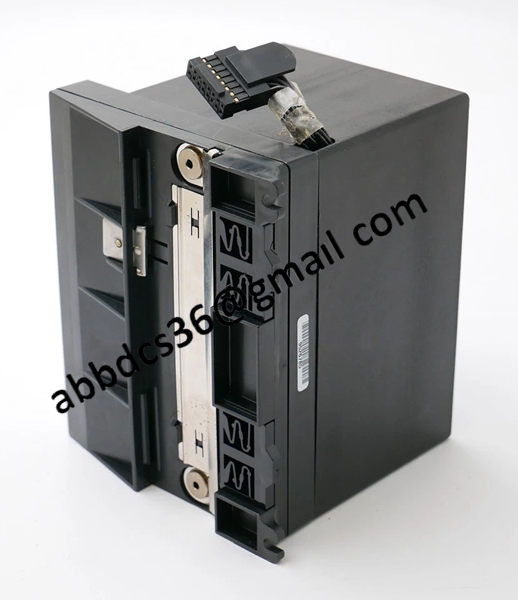

Product detailed pictures：
IC670PBI001
