IC693APU300K high-speed counter module
Product Manual：
IC693APU300K high-speed counter module
IC693APU300K is a high-performance high-speed counter module from GE Fanuc 90-30 series, with a single slot design and independent high-speed pulse processing.
Standard 80kHz/enhanced 1MHz dual frequency counting, suitable for high-speed pulse acquisition.
12 channel source input, supporting 5VDC/10-30VDC wide voltage signals.
4-channel source type output, single channel 500mA, can directly drive relays/indicator lights.
Multi mode configuration: 1/2/4 counters can be selected to adapt to different processes.
32-bit bidirectional counting, supporting addition/subtraction/bidirectional/difference counting modes.
Built in 2MHz oscillator, supporting Z-phase event and flip detection.
Independent computation, no need for CPU intervention, reducing the load on the main control.
Window comparison function, filters interference pulses, and prevents false counting.
Optoelectronic isolation ± 2kV, anti surge, suitable for harsh electrical environments.
Industrial wide temperature range -20 ℃ to+70 ℃, suitable for harsh working conditions.
Dual LED status indication, real-time display of running/fault status.
Single slot backplate installation, compatible with 90-30 series PLC bases.
Support encoder AB phase input and quadruple frequency to improve positioning accuracy.
Output overcurrent/short circuit protection, built-in 3A fuse protection.
Support firmware upgrade, stable and easy to maintain long-term operation.
In summary, the IC693APU300K is widely used in industrial automation scenarios such as high-speed motion, precision measurement, and position synchronization due to its ultra-high counting rate, independent processing capability, and strong protection design.

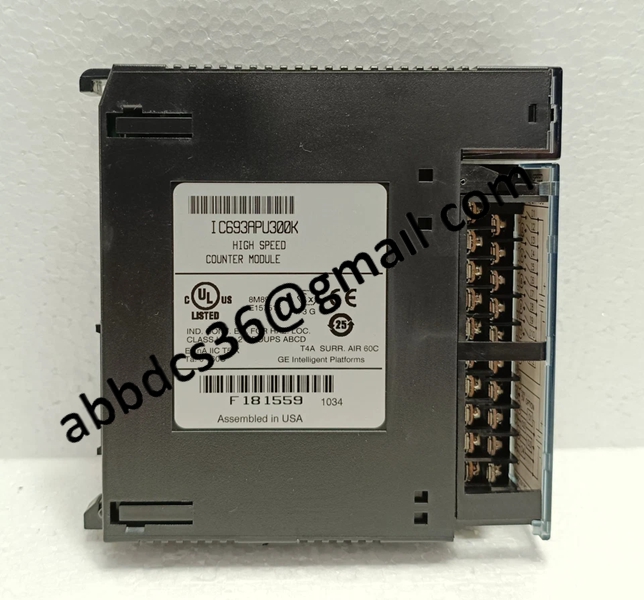

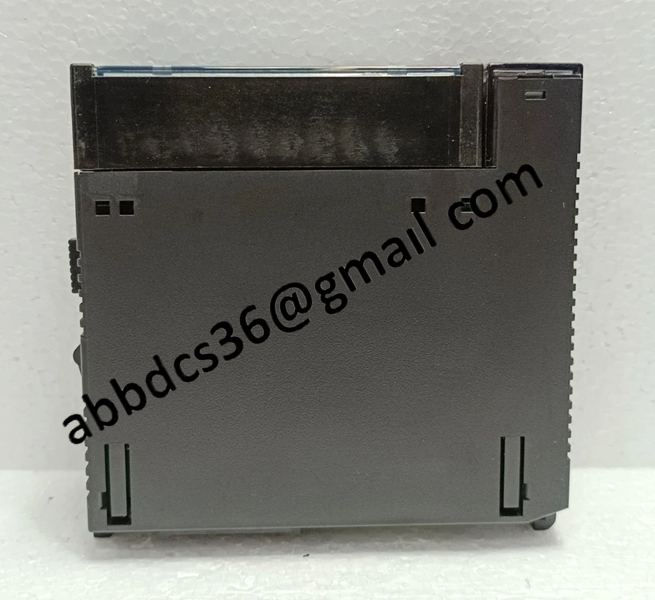

Product detailed pictures：
