ICS TRIPLEX T8311 extender interface module

Product Manual：

ICS TRIPLEX T8311 extender interface module product features:

1. Compatible with Trusted TMR security system, bridging the host chassis and expansion I/O chassis
2. the third mock examination redundant TMR architecture, with single point fault tolerance capability
3. Expand the bus for high-speed transmission, with a speed of 250Mbps and real-time data exchange
4. Implement secure signal communication between the mainframe and CS300 expansion chassis
5. Support module hot plugging and maintenance without interrupting the system
6. LED status indicator light, quickly identify link and module faults
7. Built in complete hardware self diagnosis to detect link abnormalities

8. SIL3 safety level ensures reliable operation of safety instrumented systems
9. Slot installation, compatible with T8300 series chassis
10. 20-32VDC rack power supply, stable and controllable power consumption
11. Electrical isolation design to resist on-site electromagnetic interference
12. Cascadable expansion chassis, flexible expansion of I/O point scale
13. The verification mechanism ensures that the transmitted data is not lost or erroneous
14. Wide temperature operation, suitable for harsh working conditions of chemical cabinets in power plants
15. Industrial safety board, supporting 7 × 24-hour continuous operation of the system

The above are the core features of the ICS TRIPLEX T8311 extender interface module, used for Trusted Security System I/O chassis expansion interconnection.

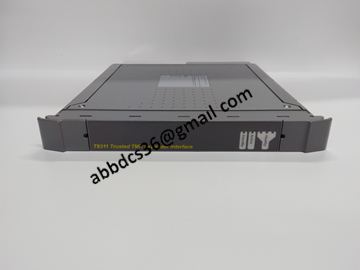

Product detailed pictures：

T8311
