IGCT 3BHB003154R0101 thyristor module
Product Manual：
IGCT 3BHB003154R0101 thyristor module is a high-power integrated gate commutated thyristor power device used for power switching in medium and high voltage converter transmission equipment.
1. IGCT 3BHB003154R0101 has fast switching speed, low on state loss, and strong high-power carrying capacity
2. Crimp type power package, easy to disassemble and assemble, easy to replace and maintain spare parts
3. Integrated gate driver unit to achieve fast on/off control of devices
4. Suitable for water-cooled/air-cooled heat dissipation, suitable for working conditions inside high-power cabinets
5. Wide temperature working range, adaptable to temperature fluctuations in industrial sites
6. High insulation level, reliable electrical isolation under high voltage conditions
7. Compact module structure, saving installation space for inverter cabinets
8. The terminal crimping is reliable, resistant to vibration and impact, and the contact performance is stable
9. IGCT 3BHB003154R0101 has surge resistance and can withstand voltage fluctuations in the power grid
10. Multiple modules can be connected in parallel to expand the overall power level of the machine
11. Compatible with the same series of converter machines, with high assembly compatibility
12. Built in short circuit and overcurrent hardware protection to reduce the risk of device damage
13. Support high-frequency power conversion to achieve AC/DC energy conversion
14. Industrial power devices, suitable for long-term full load continuous operation
15. IGCT 3BHB003154R0101 is commonly used in medium voltage frequency conversion, power transmission, rectification and inverter scenarios
Overall, the IGCT 3BHB003154R0101 thyristor module has excellent power performance and is the core power component of high-voltage and high-power converter equipment.

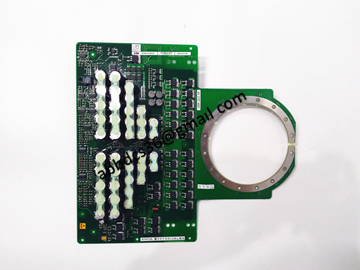

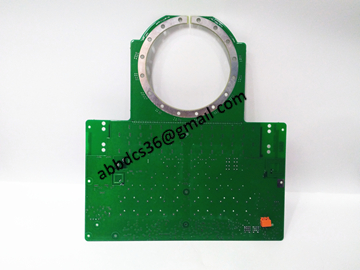

Product detailed pictures：
3BHB003149P104
