IS200ISBBG2AAB controller module

Product Manual：

GE IS200ISBBG2AAB bus bypass board, EX2100 excitation system InSync bus interface board.
1. Implement bus bypass switching to ensure continuous operation of the unit during maintenance
2. Dual interfaces, complete high-speed bus interaction within the system
3. Onboard signal transmission and reception, processing interlocking status signals
4. Channel electrical isolation, resistant to high voltage side interference
5. Panel LED, displaying power and communication status

6. Chassis slot installation, backplane power supply
7. Support hot plugging and online replacement
8. Hardware CRC verification ensures reliable data transmission
9. Onboard self diagnosis, quickly locate communication faults
10. Circuit board coating protection, resistant to dust and moisture
11. Compatible with GE EX2100 generator excitation control system
12. Receive main control instructions and provide feedback on the excitation operation status
13. Used for redundant architecture to enhance system availability
14. Low power consumption, suitable for long-term operation of cabinets
15. Industrial wide temperature range, used in power plant excitation cabinets
IS200ISBBG2AAB is commonly used for bus bypass processing in the excitation system of steam turbine generator EX2100.

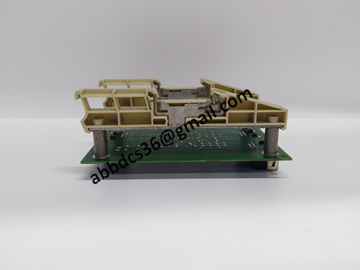

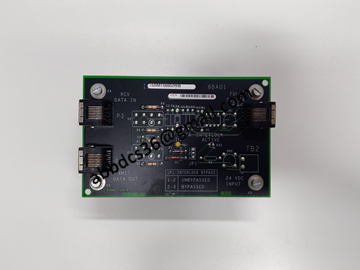

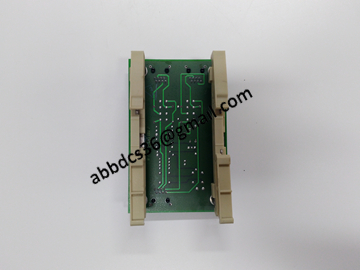

Product detailed pictures：

IS200ISBBG2AAB

product video
