IS200TBCIH1CCD Contact Input Terminal Board

Product Manual：

1、 Product Overview

IS200TBCIH1CCD is used to connect the switch signals of on-site equipment (such as switch status, interlock signals, alarm contacts, travel switches, etc.) to the control system and transmit them to the corresponding I/O or control modules for logical processing and protection judgment.

2、 Main features
Multi channel contact signal input
Supports a large number of dry contact input channels, which can be used for equipment status and interlocking signal acquisition.
Signal allocation and interface functions
As an intermediate interface between the site and the control system, it achieves standardized signal access.
High reliability industrial design
Suitable for high interference, high continuity operating environments such as power plants and petrochemicals.
Strong anti-interference ability
Having good electrical isolation and surge resistance, improving signal stability.
Rapid response capability
Meet the requirements of real-time signal processing for protection and interlocking systems.
System dependent operation
It does not execute control logic itself and needs to operate in conjunction with the main control system.
easy maintenance
Plug in structure, easy to replace and maintain.
3. Summary

IS200TBCIH1CCD is a contact type input terminal board in GE turbine control systems. Its core function is to reliably collect and transmit on-site dry contact signals, and it plays a fundamental but critical interface role in unit protection, interlock control, and status monitoring.

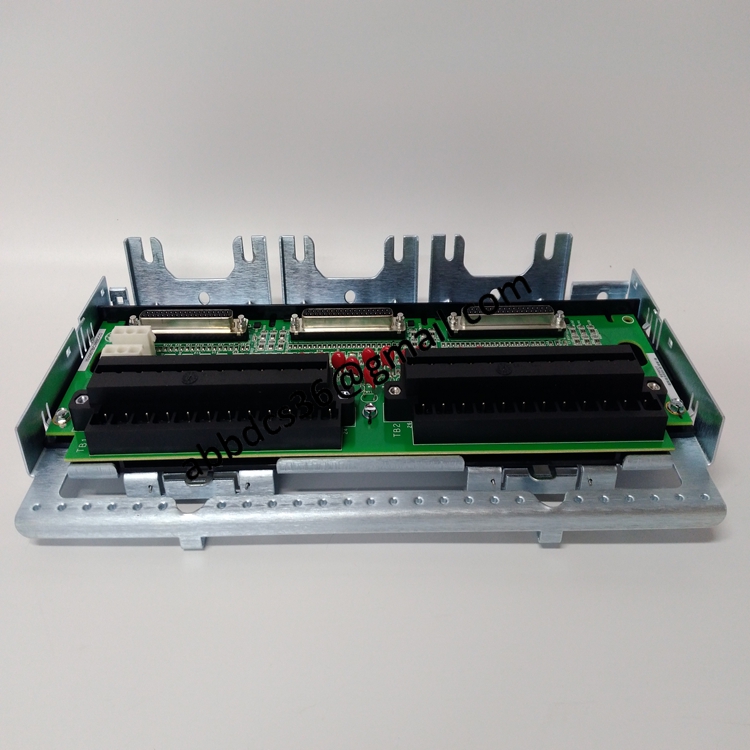

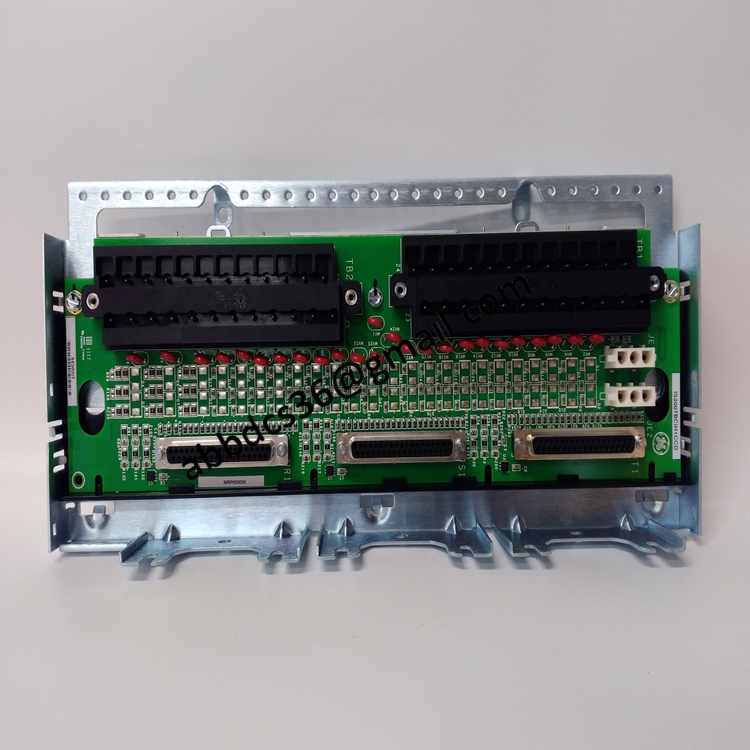

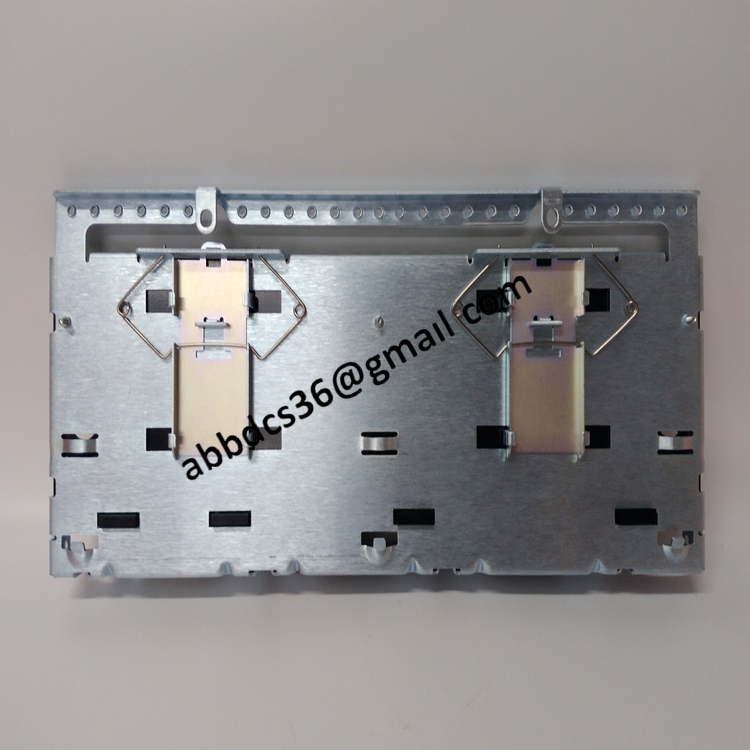

Product detailed pictures：

IS200TBCIH1CCD
