IS200TVBAH2ACC vibration input terminal board

Product Manual：

IS200TVBAH2ACC vibration input terminal board
IS200TVBAH2ACC is a GE Mark VIe series dedicated vibration signal acquisition terminal board designed for gas/steam turbine shaft vibration monitoring, with high precision, high reliability, and adaptability to TMR architecture.
Specially equipped with GE Mark VIe/VIeS control system, seamlessly connected to IONet network.
Provide 16 vibration signal input channels and support TMR triple redundancy configuration.
Compatible with both IEPE accelerometers and magneto electric speed sensors.
Built in 2.0mA constant current source, suitable for IEPE/ICP sensor power supply requirements.
Supports ± 10VDC magnetic electric speed sensor signal input.
Built in programmable anti aliasing filtering to improve signal acquisition accuracy.

Adopting a 28VDC single power supply to simplify on-site wiring.
Dual terminal block (TB1/TB2) design, supporting 14 sensor wiring.
Equipped with 7 Sub-D connectors (9/25/37 pins), the connection is stable and reliable.
Supports two installation methods: DIN rail and cabinet flat.
Industrial grade design, working temperature -30 ℃~+65 ℃, suitable for harsh working conditions.
Built in signal isolation and surge protection enhance anti-interference capability.
Support diagnosis of sensor disconnection and abnormal bias voltage.
Multi layer PCB technology, compact structure, strong vibration resistance.
No jumper design, convenient on-site debugging and maintenance.
IS200TVBAH2ACC, with precise signal conditioning and high reliability redundancy design, has become the core terminal board for Mark VIe system vibration monitoring.

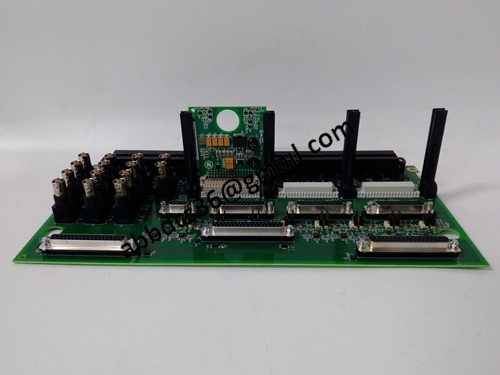

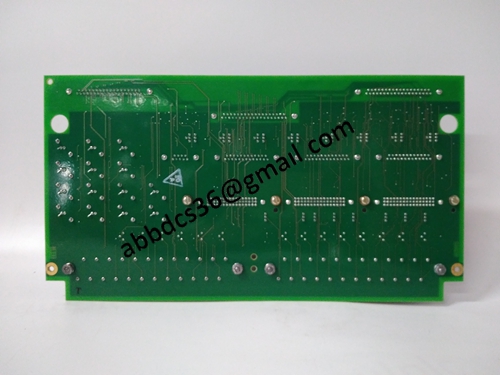

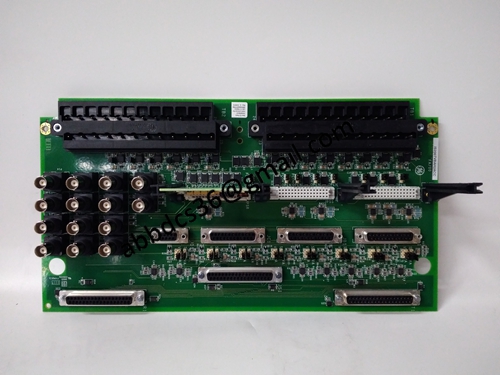

Product detailed pictures：
