JANCD-XTUO1B Printed Circuit Board

Product Manual：

JANCD-XTU01B printed circuit board is a dedicated control board for Yaskawa robots, compatible with XRC series control cabinets.
Main focus is on external servo axis control, supporting multi axis synchronous operation.
Integrated multiple high-speed I/O channels for high signal transmission efficiency.
Using 24VDC industrial standard power supply, stable operation.
Onboard LED indicator lights provide intuitive display of status and faults.
Built in anti-interference circuit, suitable for complex electromagnetic working conditions.
The motion command is processed quickly and the control response is sensitive.

Standard slot installation, easy and convenient disassembly and maintenance.
Can be connected to external servo devices such as positioners and walking axes.
Reasonable line layout and low long-term operation failure rate.
Industrial grade workmanship, with a long service life.
Compatible with multiple robot accessories of the same series, with strong scalability.
Adapt to the conventional temperature and humidity environment in the workshop, with good environmental adaptability.
Compact size, saving installation space inside the control cabinet.
Overall, the JANCD-XTU01B printed circuit board has stable performance and practical functions, making it a core component for robot motion expansion.

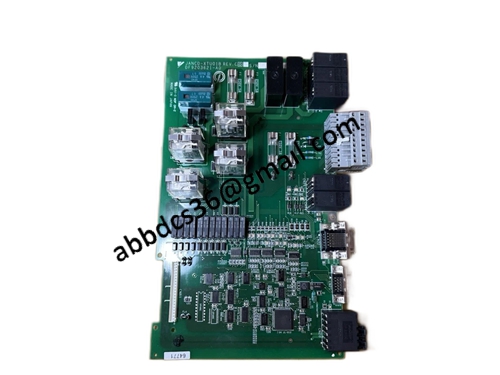

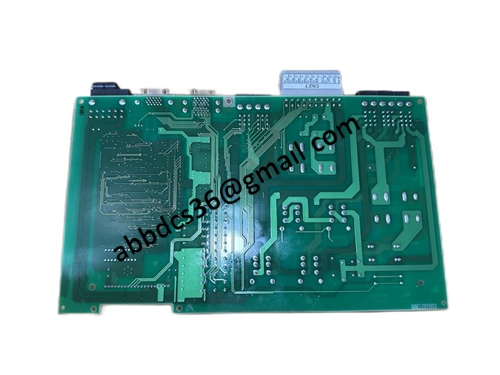

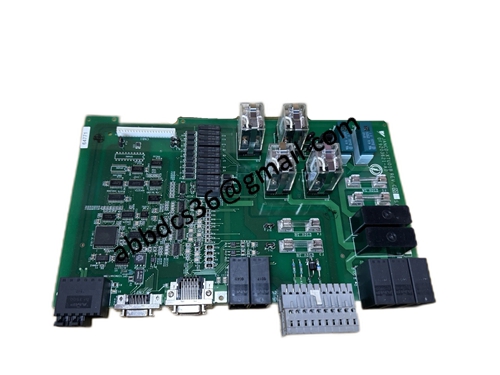

Product detailed pictures：

JANCD-XTUO1B
