JEOL AP002270-00 Input/Output Module
Product Manual：
JEOL AP002270-00 input/output module is compatible with JSM-6701F scanning electron microscope to achieve various switch signal acquisition and drive control.
1. Original accessories, compatible with JEOL JSM-6701F field emission scanning electron microscope
2. Multiple I/O channels, collecting switch signals such as valves and limit switches
3. Output driving signals to control solenoid valves and actuating components
4. Optoelectronic isolation circuit to avoid mutual interference of circuit signals
5. Fast response speed ensures precise timing of equipment interlocking
6. Slot style structure, easy disassembly and replacement operation
7. Built in anti-static protection to protect precision components
8. Electromagnetic shielding design, suitable for laboratory electromagnetic environment
9. Industrial grade components that support long-term continuous operation of instruments
10. Bidirectional signal transmission, synchronous feedback of equipment operation status
11. Equipped with signal anomaly detection function, quickly identify faults
12. Integrated overvoltage protection to reduce the risk of circuit damage
13. Strong environmental adaptability and tolerance to temperature and humidity fluctuations
14. The wiring is neat and clear, making it convenient for maintenance and troubleshooting
15. Accurate size standards, no need for complex debugging after replacement
The JEOL AP002270-00 input/output module mainly controls the interaction of vacuum valves, safety interlocks, and gas circuit component signals.

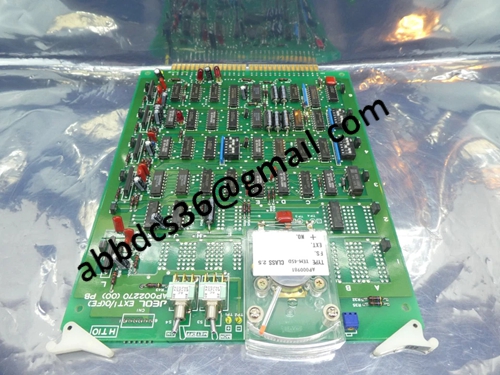

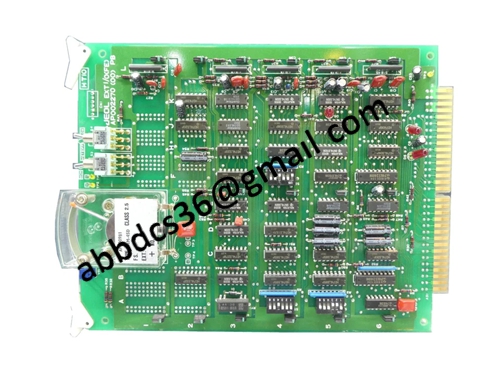

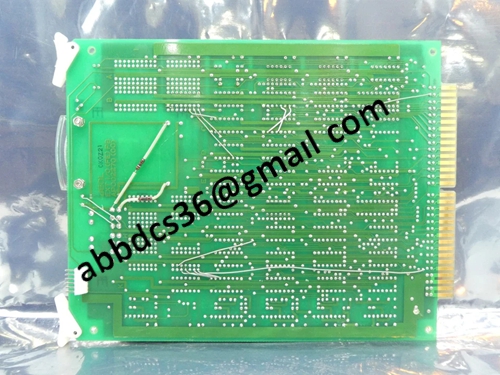

Product detailed pictures：
AP002270-00
