JEOL AP002400-01 Counting Board

Product Manual：

JEOL AP002400-01 Counting Board
1. Adapt to JEOL precision equipment and comply with original electrical technical specifications
2. JEOL AP002400-01 Counting Board realizes pulse signal acquisition and counting operation
3. Independent signal channel design effectively avoids signal crosstalk
4. Integrated surge protection circuit to prevent instantaneous voltage damage to the board
5. JEOL AP002400-01 counter board has a built-in filtering circuit to suppress external electromagnetic interference
6. Can adapt to temperature fluctuations in the equipment compartment
7. Standard slot installation, easy to disassemble and replace
8. High counting accuracy, stable pulse recognition, and less likely to miss the meter

9. The JEOL AP002400-01 counting board uses industrial components and supports long-term continuous operation
10. The signal status can be monitored, making it easy to quickly locate abnormal faults
11. The interface definition is universal with the original components, and can be directly replaced without changing the wiring
12. The insulation of the circuit board is reliable, reducing the risk of short circuit leakage
13. JEOL AP002400-01 Counting Board Completed Counting Accuracy Test at Factory
14. Real time uploading of counting data to the main control unit and auxiliary equipment logic control
15. Strong operational stability, reducing equipment downtime and maintenance costs
JEOL AP002400-01 counter board is responsible for pulse signal statistical acquisition, ensuring accurate and reliable measurement and monitoring of JEOL precision equipment

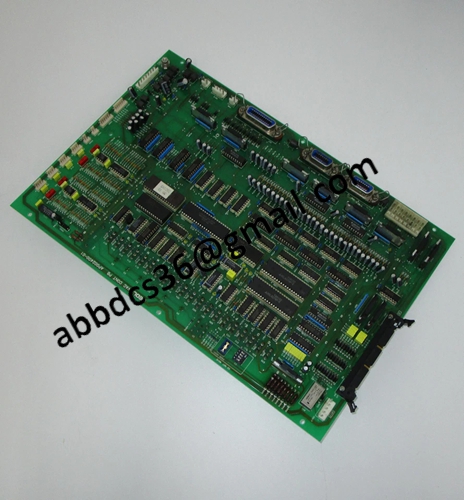

Product detailed pictures：

AP002400-01
