JEOL AP003442-00 Axis Control Board

Product Manual：

JEOL AP003442-00 Axis Control Board
1. Adapt to JEOL precision equipment and control the movement and operation of JEOL AP003442-00 motion axis
2. Accurately output driving signals to control axis positioning and movement
3. Support position signal acquisition, real-time feedback of current axis coordinates
4. Built in signal filtering circuit to avoid interference with motion signals
5. Standard board size, easy to disassemble and replace operation
6. The operation timing and equipment control system are perfectly matched
7. Equipped with circuit protection to block instantaneous voltage surges

8. Industrial PCB board, suitable for dust-free workshop working environment
9. Support continuous reciprocating motion, excellent stability
10. Reserve test points for quick troubleshooting of JEOL AP003442-00 motion abnormalities
11. Original factory standardized production, unified and stable board performance
12. Matching power supply parameters with the original design standards of the entire machine
13. Compact board layout, suitable for equipment installation space
14. High quality electronic components extend the lifespan of JEOL AP003442-00
15. Original factory spare parts that can directly replace faulty old boards
JEOL AP003442-00 axis control board is responsible for positioning control and motion signal processing of equipment motion axis

Product detailed pictures：

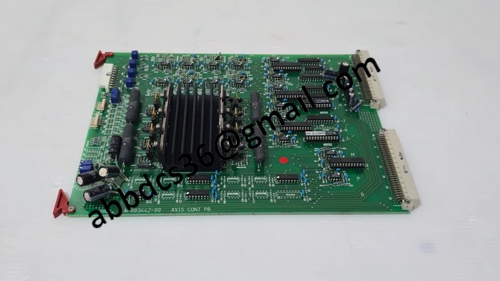

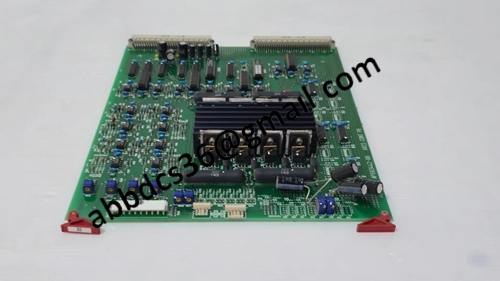

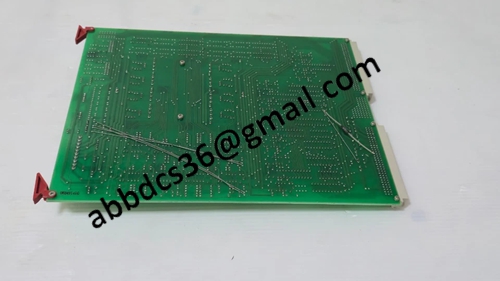

AP003442-00
