JEOL BP100768-01 Input/Output Module

Product Manual：

1. JEOL BP100768-01 Input/Output Module collects device sensing signals
2. Distribute control signals to drive on-site supporting execution accessories
3. Optoelectronic isolation separates strong and weak electricity to avoid interference with the main control circuit
4. Slot insertion and installation, easy maintenance and replacement
5. Low working temperature rise, able to operate continuously for a long time
6. Serving electron microscopy sensing acquisition and air valve switch control
7. Good seismic resistance, less prone to signal misoperation under vibration
8. Connect to the main control of the whole machine, and once the wiring is completed, it can work normally

9. Each channel operates independently, and single channel faults are not interrelated
10. Adapt to semiconductor equipment limit and gas path signal control
11. Separate the routing of strong and weak lines to reduce signal interference with each other
12. Ordinary computer room environment can operate stably for a long time
13. Board protection and dust prevention to reduce poor wiring contact issues
14. Equipped with overvoltage protection and abnormal voltage protection for internal components
15. JEOL BP100768-01 Input/Output Module has passed the factory inspection and can be used immediately after installation
The JEOL BP100768-01 input/output module completes the signal interaction of the entire machine, ensuring reliable protection and stable operation.

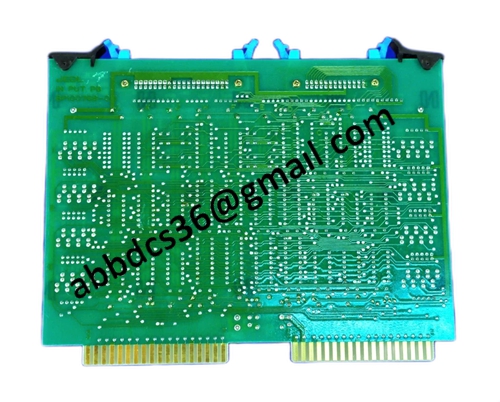

Product detailed pictures：

BP100768-01

product video
