JEOL CP002830-03 Control Board

Product Manual：

JEOL CP002830-03 Control Board
1. JEOL CP002830-03 Integrated Instrument Action Control and Signal Processing
2. CP002830-03 can receive various acquisition signals and issue control instructions
3. Onboard electrical isolation to weaken electromagnetic interference inside the instrument
4. Equipped with self checking function, it can quickly identify hardware and circuit abnormalities
5. The board has strong heat resistance and is not easily deformed after long-term continuous operation
6. Anti oxidation treatment on the surface to delay aging and corrosion
7. Structural reinforcement for earthquake resistance, ensuring stable operation of equipment under vibration during operation
8. The line partition is independent, and local faults will not cause the whole machine to be paralyzed

9. Original standard installation position, easy disassembly, replacement and alignment
10. Integrated basic overcurrent protection, easy to burn circuit boards due to misconnection
11. The signal operation responds quickly, and the device actions are executed in a timely manner
12. Suitable for instrument enclosed chambers, with moisture and dust resistance meeting standards
13. Supporting original factory program protocol, no need for tedious debugging on the machine
14. Moderate working power consumption, controllable temperature rise during full load operation
15. After undergoing power on aging testing at the factory, the operating failure rate is low
Overall, JEOL CP002830-03 runs stably and reliably, making it a dedicated control board for JEOL precision equipment.

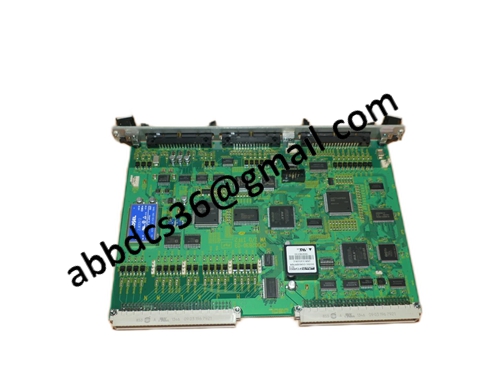

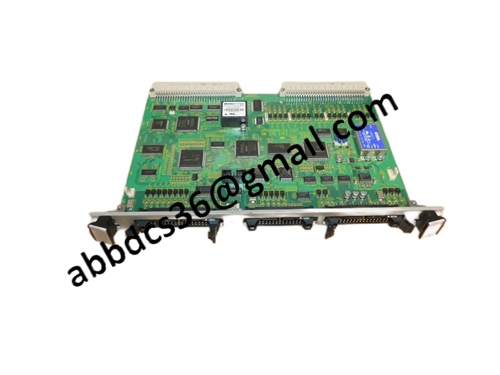

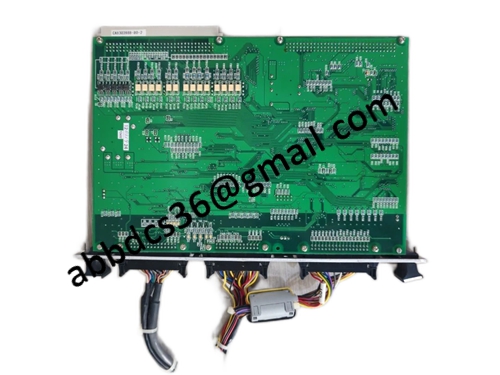

Product detailed pictures：

CP002830-03
