JEOL PP01110-0 Controller Backboard

Product Manual：

JEOL PP01110-0 Controller Backboard
1. Suitable for JEOL precision equipment, carrying various types of JEOL PP01110-0 board plug-in communication
2. Integrate multiple bus lines to achieve signal interconnection between modules
3. Optimization of line impedance to ensure stable high-speed signal transmission
4. Comes with a power distribution line to supply power to the plug-in card
5. Standard slot layout, convenient card insertion and replacement
6. Add grounding design to effectively suppress electromagnetic interference
7. Partition wiring, isolate strong and weak electrical circuits
8. Industrial PCB material, suitable for clean workshop environment

9. Positioning buckle design ensures secure connection of the board
10. Reserve test contacts for easy maintenance of JEOL PP01110-0 communication abnormalities
11. Original factory manufacturing, unified size and electrical parameters
12. Matching power supply specifications with overall system requirements
13. Integrated structure, saving internal space of the cabinet
14. Durable copper contacts delay JEOL PP01110-0 contact aging
15. Original factory accessories, directly replace old backboards
The JEOL PP01110-0 controller backplane serves as the chassis carrier to complete the power supply and signal interconnection of various control modules.

Product detailed pictures：

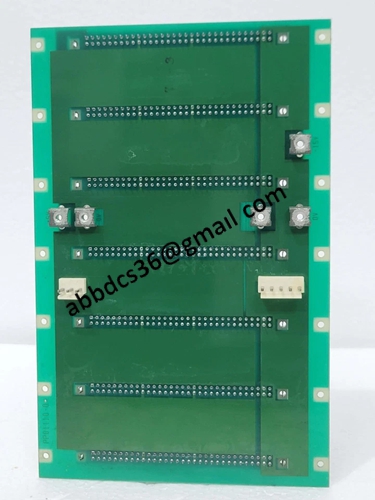

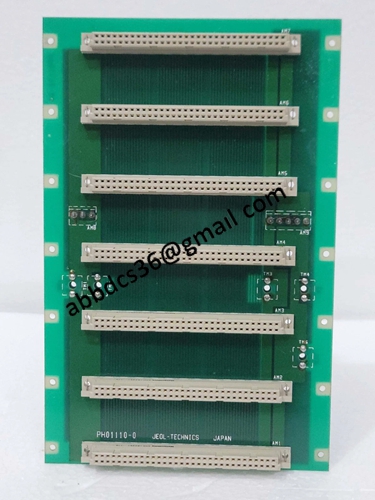

PP01110-0
