JEOL PP02137-0 Digital Control Board

Product Manual：

JEOL PP02137-0 Digital Control Board
1. Compatible with JEOL precision equipment, JEOL PP02137-0 processes switch type digital control signals
2. Shielding on-site electromagnetic interference, precise and stable signal acquisition and output
3. Electrical isolation protection to prevent instantaneous high-voltage breakdown of board components
4. Receive main control instructions, output switch signals to control the on/off of peripheral devices
5. High quality PCB substrate, less prone to circuit aging and faults during long-term power on operation
6. Slot insertion assembly, easy disassembly, maintenance, and replacement operation
7. Continuous and stable operation under normal temperature and humidity conditions in the computer room

8. Each digital channel operates independently without signal interference with each other
9. Automatic protection during line overcurrent, effectively preventing hardware from burning out
10. The original factory welding is firm, resistant to equipment operation vibration without loosening or detachment
11. Optimization of circuit layout to reduce digital signal transmission loss
12. Low working power consumption and low heat generation during operation
13. The pin interface specifications are consistent and can be directly replaced with the old JEOL PP02137-0
14. Factory calibration and testing of the entire machine, no need for complex debugging during installation
15. Strong overall stability, suitable for long-term uninterrupted operation of equipment
The JEOL PP02137-0 digital control board is a durable and reliable original board for JEOL equipment switch logic control

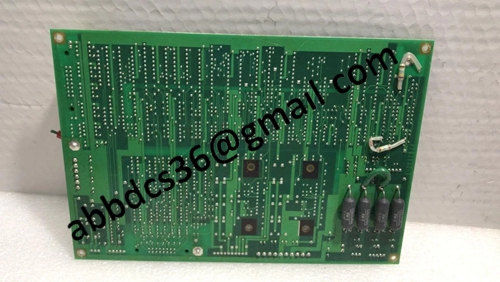

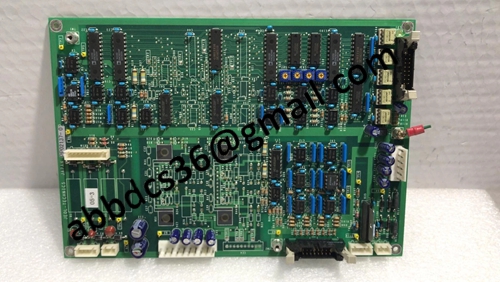

Product detailed pictures：

SM160016

product video
